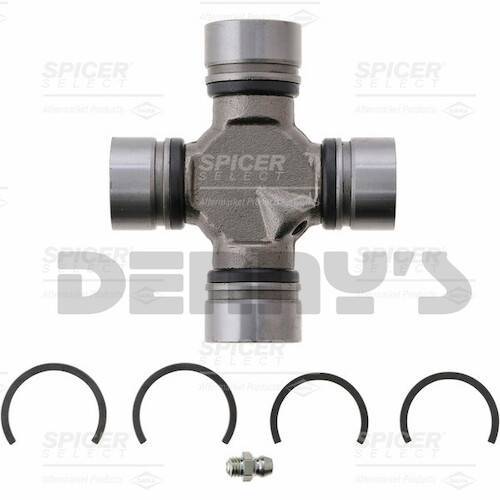

Dennys Driveshafts and Driveline Parts - Combo U-Joint DODGE 7260 to 7290 series 2.125 INSIDE to 2.625 INSIDE

7260 to 7290 series Combination Universal Joints

To connect 7260 series driveshafts or driveline components to 7290 series driveshafts or driveline components.
- For example:
  - to connect a 7260 slip yoke to a 7290 driveshaft.
  - to connect a 7290 driveshaft to a 7260 rear end pinion yoke
7260 series
- 2.125 inches (2 1/8) wide between the yoke inner surfaces where the "C" Clips lock in. Approximate overall width cap to cap is 3 1/4 inches
- 2 bearing caps are 1.078 inch diameter
- Designed for INSIDE "C" Clip style driveshaft yokes and also NON Locating Tab style pinion yokes, transmission yokes and transfer case yokes
7290 series
- 2.625 inches (2 5/8) wide between the yoke inner surfaces where the "C" Clips lock in. Approximate overall width cap to cap is 3 5/8 inches
- 2 bearing caps are 1.125 inch diameter
- Designed for INSIDE "C" Clip style driveshaft yokes and also NON Locating Tab style pinion yokes, transmission yokes and transfer case yokes

CLICK on the selections below for more details
