Driveshaft and Driveline Parts > Universal Joints > COMBINATION-CONVERSION U-Joints > Combo U-Joint 1310 to 1330 series 3.219 X 3.625

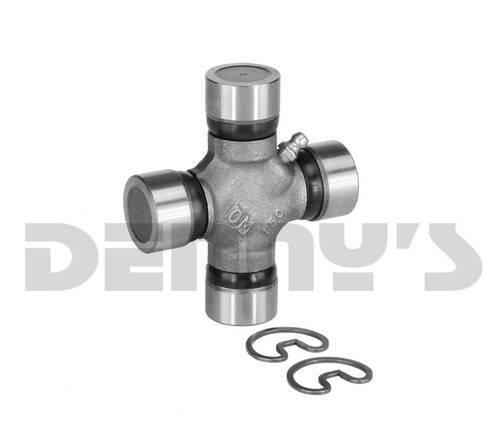

1310 to 1330 series Combination Universal Joints

  • To connect 1310 series driveshafts or driveline components to 1330 series driveshafts or driveline components.
    • For example:
      • to connect a 1310 slip yoke to a 1330 driveshaft.
      • to connect a 1330 driveshaft to a 1310 rear end pinion yoke
  • 1310 series
    • 3.219 inches (3 7/32) wide across bearing caps
    • 2 bearing caps are 1.062 inch (1 1/16) diameter
    • Some FORD applications can have 2 bearing caps 1.125 inch (1 1/8) diameter where it is connected to a u-bolt style yoke.
    • Designed for Outside snap ring style driveshaft yokes and also Locating Tab style pinion yokes, transmission yokes and  transfer case yokes
  • 1330 series
    • 3.625 inches (3 5/8) wide across bearing caps
    • 2 bearing caps are 1.062 inch (1 1/16) diameter
    • Some FORD applications can have 2 bearing caps 1.125 inch (1 1/8) diameter where it is connected to a u-bolt style yoke.
    • Designed for Outside snap ring style driveshaft yokes and also Locating Tab style pinion yokes, transmission yokes and  transfer case yokes

CLICK on the selections below for more details


Combo U-Joint 1310 to 1330 series 3.219 X 3.625

1.062 X 1.062 Bearing Cap Diameter

1.062 X 1.125 Bearing Cap Diameter
