DANA 60 / 248mm

248 mm / 9.75 inch ring gear

1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

FORD F-250, F-350, F-450, F-550
LEAF Spring FRONT ONLY
image/jpeg
  • Dana 60 front axles have been used in FORD F-250 and F-350 4x4 trucks since the mid 70's.  In 2000 Ford F-450 and F-550 4x4 models also used the Dana 60 front axles and starting in 2005 the F-450 and F-550 had the Super 60 front axles.  The Ford 4x4 Dana 60's have the drivers side drop, both standard (low pinion) and  reverse cut (high pinion) gears and kingpin steering knuckles up to about 1991 and in 1992 they started using ball joints in the steering knuckles.







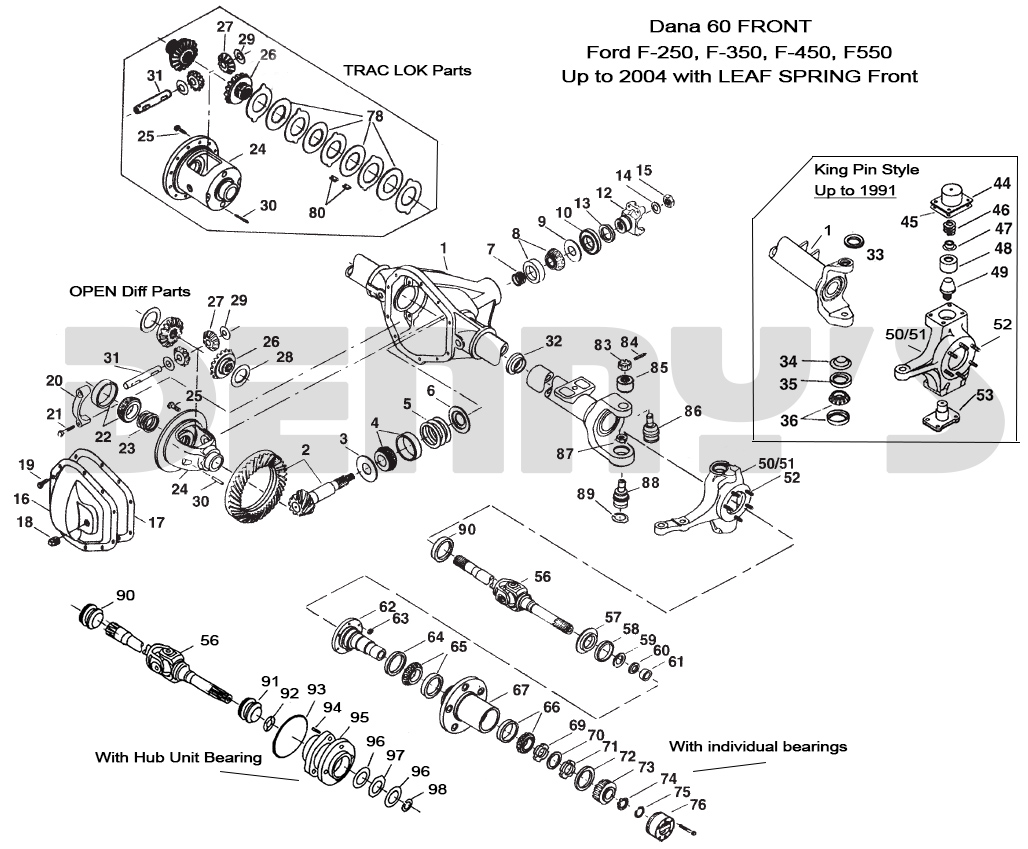

Ford Dana 60 Front Exploded View



Diagram # Part # Description Diagram #
 Part #
 Description
 1  ****  Housing - for referrence only  33 - 53  Multiple  King Pin Parts
 2  Multiple  Ring and Pinion Gear Set  50 - 51  ****  Knuckle
 3  34643  Slinger - Inner Pinion Bearing  52  37759-2  Spindle Stud and nut
 4  706046X  Inner Pinion Bearing  56  Multiple  AXLE shaft parts
 5  708020  Shims - Diff and Pinion kit  57  Multiple  Dust shield seal retainer
 6  30982  Baffle  58 - 61  Multiple  Spindle bearing and seal kit
 7  708020  Shims - Diff and Pinion kit  62  Multiple  Spindle
 7  45658  Crush Collar  63  37759-2  Nut for spindle stud
 8  706045X  Outer Pinion Bearing  64  Multiple  Inner hub seal
 9  42737  Thrustwasher  65  Multiple  Inner wheel bearing
 10  Multiple  Pinion Seal  66  Multiple  Outer wheel bearing
 11      67  ****  Hub
 12  Multiple  Pinion Yoke  68  ****  ****
 13  ****  Slinger comes with pinion yoke  69  Multiple  Inner Nut - wheel bearing
 14  30275  Pinion Washer  70  Multiple  Washer - wheel bearing
 15  30271  Pinion Nut  71  Multiple  Outer Nut - wheel bearing
 16  Multiple  Diff Cover  72  37997  Spacer
 17  34687  Cover Gasket  73  37994  Gear
 18  ****  Plug  74  620142  Snap ring fits axle shaft
 19  34822  Cover bolts  75  620097  Snap ring fits hub
 20  ****  Diff bearing cap  76  *****  Lockout Hub
 21  ****  Cap bolt  78  Multiple  Posi clutch plate kit
 22  706047X  Diff Bearings  80  40835  Trac lok posi plate clips
 23  708020  Shims - Diff and Pinion kit  83 - 89  700238-2X  Ball Joint Set
 24  Multiple  Diff Case  90  Multiple  Seal see 50381 and 50492
 25  40638  Ring Gear Bolt  91  50491  Seal
 26  35625  Diff Large Spider Gear  92  47766  Thrustwasher
 27  34367  Diff Small Spider Gear  93  41784-2  O Ring
 28  34729  Thrustwasher  94  47816  Stud
 26, 27, 28, 29  Multiple  Spider Gear Kit  95  *****  Hub Unit Bearing
 29  34730  Cupped thrustwasher  96 - 97  701166X  Thrustwasher Kit
 30  44810  Lock pin - Open Diff and Trac Lok  98  620142  Snap Ring
 31  30263  Cross pin - Open Diff and Trac Lok
 32  Multiple  Axle tube seal
