Dana Spicer 3-4-8681-1 Pinion Yoke 1350 Series Chevy and GM fits 8.5 inch 10 Bolt 30 spline

Part Number:
3-4-8681-1

UPC:

023913231408

Your Cost $193.54

STATUS: FACTORY DIRECT - SPECIAL ORDER

Dana Spicer 3-4-8681-1

PINION YOKE - Strap and Bolt style

Fits Chevy and GM Corporate 8.5 inch 10 bolt front or rear ends
Fits Chevy and GM Corporate 9.5 inch 14 bolt rear ends

NO Dust Shield

1350 series
30 SPLINE
SPLINE OD = 1.312
D = 1.188
E = 3.625
Q = 1.156
R = 1.938
S = 3.125

See bottom of page for required strap and bolt set

See 3-4-8691-1X for same yoke with dust shield

Dana Spicer 3-4-8681-1 Pinion Yoke 1350 Series Chevy and GM fits 8.5 inch 10 Bolt 30 spline

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: FACTORY DIRECT - SPECIAL ORDER

YOUR COST: $193.54

>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<

Dana Spicer 3-4-8681-1

PINION YOKE - Strap and Bolt style

Fits Chevy and GM Corporate 8.5 inch 10 bolt front or rear ends
Fits Chevy and GM Corporate 9.5 inch 14 bolt rear ends

NO Dust Shield

1350 series
30 SPLINE
SPLINE OD = 1.312
D = 1.188
E = 3.625
Q = 1.156
R = 1.938
S = 3.125

See bottom of page for required strap and bolt set

See 3-4-8691-1X for same yoke with dust shield

Dana Spicer 3-4-8681-1 Pinion Yoke 1350 Series Chevy and GM fits 8.5 inch 10 Bolt 30 spline

You May Also Need These Parts to Complete the Job

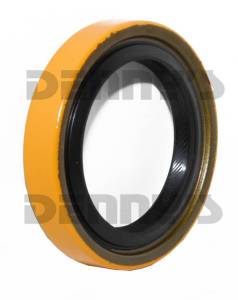

8510 PINION NUT and WASHER Set fits GM 8.5 inch and 8.6 inch 10 BOLT Part#: 8510 $4.95	Timken 2043 Pinion seal for GM 8.5 Inch 10 Bolt Rear End Part#: 2043 $10.95
Dana Spicer 3-4-8691-1X Pinion Yoke 1350 Series Chevy and GM fits 8.5 inch 10 Bolt 30 spline strap and bolt style Part#: 3-4-8691-1X $88.95	DANA SPICER 3-70-28X Strap and Bolt set fits 1350/1410 series Dana 60, 61, 70, 80 rear end yokes designed for 1.187 diameter u-joint bearing caps Part#: 3-70-28X $7.94
