76151-3X Right Inner Axle fits 2000 to 2004 FORD Super Duty F450, F550 with Dana 60 front 35 spline Replaces Dana Spicer 76151-3X FREE SHIPPING

Part Number:
76151-3X

UPC:

Your Cost $380.57

STATUS: FACTORY DIRECT - SPECIAL ORDER

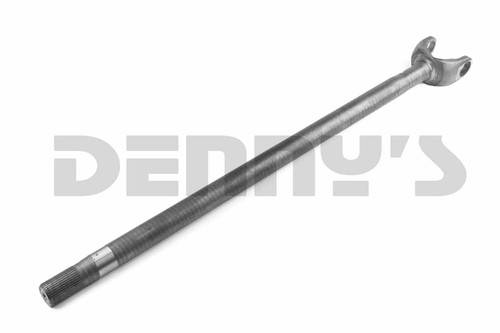

76151-3X

RIGHT INNER AXLE
Fits FORD Super Duty F450, F550 with Dana 60 front 35 spline
- 2000, 2001, 2002, 2003, 2004

This part is a replacement for the obsolete Dana Spicer 76151-3X

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

76151-3X Right Inner Axle fits 2000 to 2004 FORD Super Duty F450, F550 with Dana 60 front 35 spline Replaces Dana Spicer 76151-3X

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: FACTORY DIRECT - SPECIAL ORDER

YOUR COST: $380.57

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<

76151-3X

RIGHT INNER AXLE
Fits FORD Super Duty F450, F550 with Dana 60 front 35 spline
- 2000, 2001, 2002, 2003, 2004

RIGHT SIDE INNER - PASSENGER SIDE

Dimension "C1" = 1.5 inch diameter with 35 Splines
Dimension "C" = 38.59 inches
Use with Spicer SPL55-3X Universal Joint...See bottom of this page
U-Joint Snap Ring Dimension = 3 inches
U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )

This part is a replacement for the obsolete Dana Spicer 76151-3X

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

76151-3X Right Inner Axle fits 2000 to 2004 FORD Super Duty F450, F550 with Dana 60 front 35 spline Replaces Dana Spicer 76151-3X

You May Also Need These Parts to Complete the Job

Dana Spicer 2002692 Outer Axle Shaft 30 spline fits 1998 to 2004 Ford Super Duty F-250, F-350 with Dana 60 Front with LEAF Springs Part#: 2002692 $105.49	DANA SPICER SPL55-3X Universal Joint Dana 50 Dana 60 4x4 Front Axle U-Joint replaces 5-806X Part#: SPL55-3X $55.78
DANA SPICER SPL55-4X Front Axle Universal Joint GREASEABLE fits 1975 to 2016 FORD F-250, F-250 Super Duty, F-350, F-350 Super Duty all with DANA 60 Front Part#: SPL55-4X $61.77

Enter your email address and we'll send you a message when this item is available

Please enter your email address in order to be notified when this item is available.

[ X ]

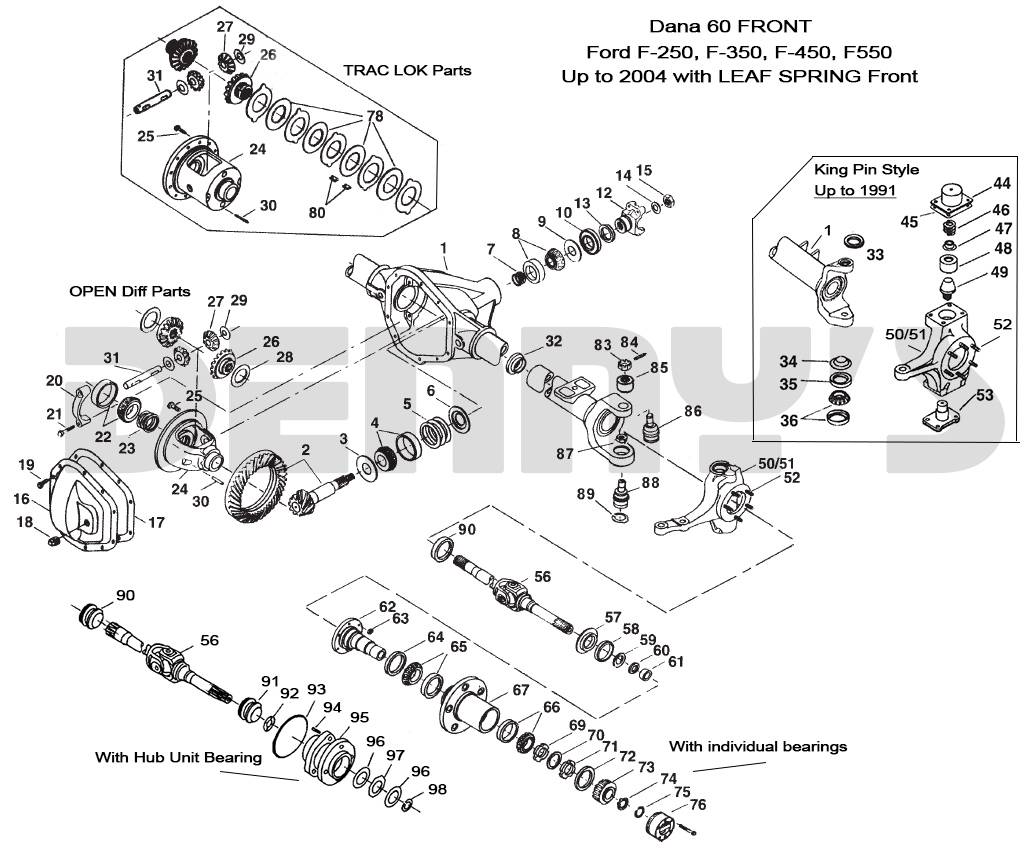

DANA 60 FRONT - FORD 1975 to 2004 > AXLE PARTS > INNER AXLE SHAFT > 2000 to 2004 F450, F550 INNER AXLE
