Driveshaft and Driveline Parts > BUILD IT YOURSELF - PARTS LISTS > 1310 SPLINE and SLIP DRIVESHAFT > BUILD 1310 SERIES with 2 INCH DIAMETER TUBE > CV STUD YOKE, H YOKE AND CENTERING YOKE

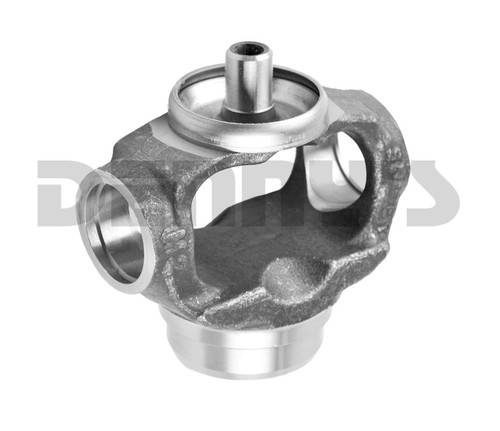

DANA SPICER 2-28-2947X CV Ball STUD YOKE 1310 Series to fit 2 inch .120 wall tube

Part Number:
2-28-2947X

UPC:

023913229283

Your Cost ~~$73.81~~ Sale Price $61.81

You Save $12.00

STATUS: IN STOCK

DANA SPICER 2-28-2947X

CV Ball STUD YOKE 1310 Series to fit 2 inch .120 wall tubing

Spicer

DANA SPICER 2-28-2947X CV Ball STUD YOKE 1310 Series to fit 2 inch .120 wall tube

DANA SPICER 2-28-2947X CV Ball STUD YOKE 1310 Series to fit 2 inch .120 wall tubing

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$73.81~~ Sale Price $61.81

You Save $12.00

DANA SPICER 2-28-2947X

CV Ball STUD YOKE 1310 Series to fit 2 inch .120 wall tubing

1310 Series

Fits 2 inch OUTSIDE Diameter Tubing with .120 inch wall thickness
Use with GREASEABLE style CV Centering Yokes ONLY
Designed to hold 1310 series universal joint
- Fits 3 7/32 wide universal joint
- Fits 1 1/16 bearing cap diameter
- Outside Snap Ring style
D = 1.062
E = 3.469
F = 1.766
H = .500
J = 1.641
K = 1.440

image/jpeg

DANA SPICER 2-28-2947X CV Ball STUD YOKE 1310 Series to fit 2 inch .120 wall tube

DANA SPICER 2-28-2947X CV Ball STUD YOKE 1310 Series to fit 2 inch .120 wall tubing

You May Also Need These Parts to Complete the Job

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10	Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66
Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 ~~$15.76~~ $14.95
