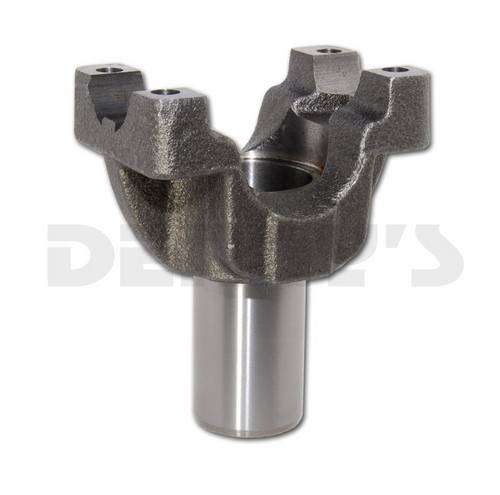

9346551 Bolt on Yoke 1330 series 28 splines for T18, T19 and NPG-435 Manual Transmission Rear Output
Part Number:
9346551


UPC:
Your Cost $112.95
STATUS:  IN STOCK - FREE SHIPPING

9346551

REAR OUTPUT YOKE for FORD Truck Manual Transmission T18, T19 and NPG-435

  • 1330 series
  • 28 splines

REPLACES FORD PART NUMBER  -  C8TZ7B198A

9346551 Bolt on Yoke 1330 series 28 splines for T18, T19 and NPG-435 Manual Transmission Rear Output
9346551 Bolt on Yoke 1330 series 28 splines for T18, T19 and NPG-435 Manual Transmission Rear Output
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $112.95

9346551

REAR OUTPUT YOKE.....BOLT ON STYLE

Fits FORD Truck Manual Transmission T18, T19 and NPG-435

REPLACES FORD PART NUMBER  -  C8TZ7B198A

  • 1330 series
    • Fits Universal Joint 3 5/8 inches wide with 1 1/8 inch bearing caps
  • U-Bolt style....see bottom of page to purchase u-bolt set
  • Replaces original equipment bolt on rear output yoke
  • 28 splines
  • 1.500 Barrel Diameter
  • 2.187 Barrel Length
  • .500 Counterbore in end of Barrel
  • 2.850 Length Through Hole
  • BOLT ON Style....this is not a slip yoke

PLEASE READ:  There are some Ford Yokes that look like this yoke but they are actually 1310 series. The 1310 series version is NOT available.  Please check yours very carefully to measure the width of the u-joint that it is designed for.

  • If the U-Joint width is 3.219 (3 7/32 inches) between the locating tabs then you have a 1310 series.
  • You can use this new 1330 series yoke with the addition of a 1310/1330 Series Combination U-Joint to connect to your 1310 Series Driveshaft.  This U-Joint is shown at the bottom of this page.
9346551 Bolt on Yoke 1330 series 28 splines for T18, T19 and NPG-435 Manual Transmission Rear Output

9346551 Bolt on Yoke 1330 series 28 splines for T18, T19 and NPG-435 Manual Transmission Rear Output
