Driveshaft and Driveline Parts > PINION YOKES - Front and Rear End > Dana > Dana 60, 61 and Dana 70 > 1310 Series - 29 splines

NEAPCO N2-4-3801X - Pinion Yoke for DANA 60 1310 series 29 spline U-Bolt Style

Part #:

N2-4-3801X

Your Cost $43.95

NEAPCO N2-4-3801X

Dana 60 with 29 splines 1310 series Pinion Yoke. U-Bolt Style

Neapco

NEAPCO N2-4-3801X - Pinion Yoke for DANA 60 1310 series 29 spline U-Bolt Style

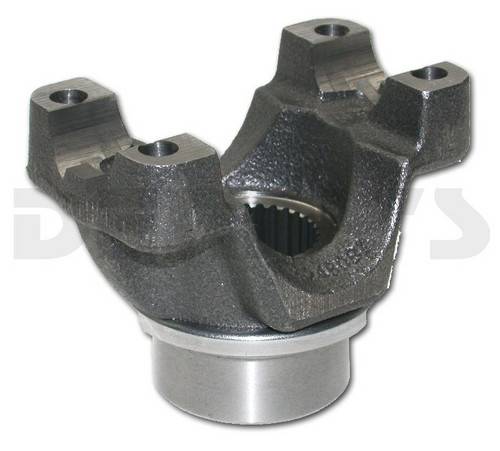

NEAPCO N2-4-3801X pinion yoke

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $43.95

NEAPCO N2-4-3801X

Dana 60 with 29 spline 1310 series Pinion Yoke. U-Bolt Style.

Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
29 spline
U-Bolt Style...U-Bolts sold separately
SPLINE OD = 1.276
D = 1.062
E = 3.219
Q = 1.500
R = 1.875
S = 2.938

image/jpeg

NEAPCO N2-4-3801X - Pinion Yoke for DANA 60 1310 series 29 spline U-Bolt Style

NEAPCO N2-4-3801X pinion yoke

You May Also Need These Parts to Complete the Job

PINION WASHER - SPICER 30275 Fits DANA 60, 61 and 70 Part#: 30275 $0.38	PINION NUT - SPICER 30271 Fits DANA 60, 61 and 70 Part#: 30271 $0.83
SPICER 42449 - Pinion Seal for DANA 60, 61 and 70 Part#: 42449 $6.26	Dana Spicer 5-153X Universal Joint $11.75 Greaseable 1310 series u-joint 3.219 x 1.062 outside snap rings Part#: 5-153X $12.25
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $16.52	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 $8.95
Dana Spicer 2-94-28X U-BOLT SET 1310-1330 Series for 1.062 bearing cap diameter Part#: 2-94-28X $5.09
