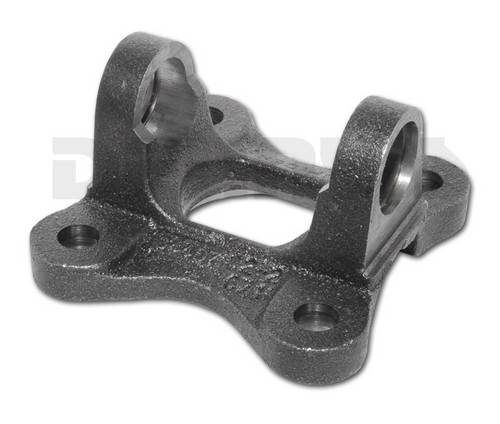

Dana Spicer 2-2-1379 FLANGE YOKE 1310 series fits Ford 8.8 inch Rear Ends LARGE BOLT PATTERN
Part Number:
2-2-1379


UPC:
023913229436
Your Cost $54.95
STATUS:  IN STOCK

Dana Spicer 2-2-1379

1310 Series Ford Flange Yoke to fit Ford 8.8 inch rear ends with Large Bolt Pattern.
   Designed for the LARGE Ford bolt pattern typically found on Full Size Ford Cars, Light Trucks and Cobra Mustang 8.8 rear ends.


Spicer
Dana Spicer 2-2-1379 FLANGE YOKE 1310 series fits Ford 8.8 inch Rear Ends LARGE BOLT PATTERN
Dana Spicer 2-2-1379 Flange Yoke 1310 series FORD
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $54.95

Dana Spicer 2-2-1379

1310 Series Ford Flange Yoke to fit Ford 8.8 inch rear ends with Large Bolt Pattern.   Designed for the LARGE Ford bolt pattern typically found on Full Size Ford Cars, Light Trucks and Cobra Mustang 8.8 rear ends.

  • A - Flange or Swing Diameter = 5.219 inches
  • B - Bolt Circle Diameter = 4.25 inches
    • Bolt Hole Diameter = .484 inches
    • Bolt Holes = 4
    • Bolt Holes = Drilled
  • C - Center Pilot Hole Diameter = 2.0 inches
    • Center Pilot Hole = Female
  • Series = 1310
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.219 inches (3 7/32 inches)
    • D - U-Joint Bearing cap diameter = 1.062 inches (1 1/16 inches)
  • G - Center of u-joint bore to Face of flange = 1.625 inches
  • X - FORD LARGE Bolt pattern = 3 inches
  • Y - FORD LARGE Bolt pattern = 3 inches

Denny's Driveshafts Flange Yoke Dimension Diagram

Dana Spicer 2-2-1379 FLANGE YOKE 1310 series fits Ford 8.8 inch Rear Ends LARGE BOLT PATTERN

Dana Spicer 2-2-1379 Flange Yoke 1310 series FORD
