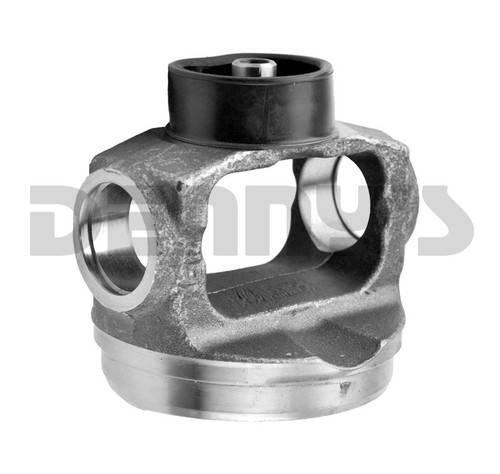

DANA SPICER 3-28-1527X CV Ball STUD YOKE 1350 Series to fit 3.5 inch .083 wall tubing
Part #:
3-28-1527X
Your Cost $87.95

DANA SPICER 3-28-1527X

CV Ball STUD YOKE 1350 Series to fit 3.5 inch .083 wall tubing

Spicer
DANA SPICER 3-28-1527X CV Ball STUD YOKE 1350 Series to fit 3.5 inch .083 wall tubing
DANA SPICER 3-28-1527X CV Ball STUD YOKE 1350 Series to fit 3.5 inch .083 wall tubing
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $87.95

DANA SPICER 3-28-1527X

CV Ball STUD YOKE 1350 Series to fit 3.5 inch .083 wall tubing


1350 Series

  • Fits 3.5 inch OUTSIDE Diameter Tubing with .083 inch wall thickness
  • Use with NON-GREASEABLE style CV Centering Yokes ONLY
  • Designed to hold 1350 series universal joint
    • Fits 3 5/8 wide universal joint
    • Fits 1 3/16 bearing cap diameter
    • Outside Snap Ring style
  • Comes with Rubber Dust Boot installed on stud yoke
  • D = 1.188
  • E = 3.875
  • F = 3.344
  • H = .500
  • J = 1.732
  • K = 1.440
image/jpeg
DANA SPICER 3-28-1527X CV Ball STUD YOKE 1350 Series to fit 3.5 inch .083 wall tubing

DANA SPICER 3-28-1527X CV Ball STUD YOKE 1350 Series to fit 3.5 inch .083 wall tubing
