Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

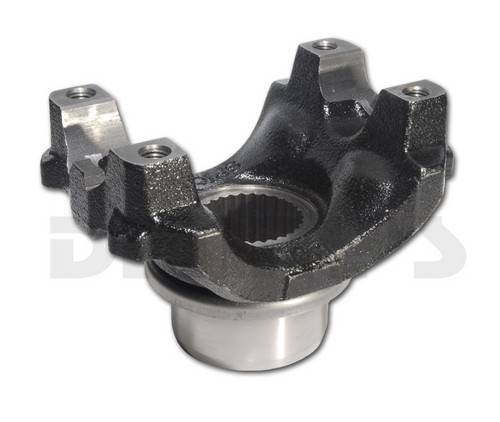

Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series for Ford Dana 60 with 29 spline pinion ...Strap & Bolt Style
Part #:
3-4-5731-1X
Your Cost $49.05

Dana Spicer 3-4-5731-1X

  • PINION YOKE
  • Fits Ford Dana 60, 61, 70 with 29 spline pinion
  • 1350 series
  • OEM Strap and Bolt style
    • Strap and bolt set can be purchased separately at the bottom of this page.

DIMENSIONS

  • Fits 1350 series u-joint 3.625 inches (3 5/8) wide with 1.188 inches (1 3/16) bearing cap diameter
  • SPLINE OD = 1.276
  • D = 1.188
  • E = 3.625
  • Q = 1.500
  • R = 1.875
  • S = 3.000

Genuine Dana Spicer Pinion Yoke

Replaces Dana Spicer 3-4-14531-1 and 3-4-12771-1

Dana Spicer 3-4-5731-1X can be used to replace the 3-4-14531-1 and 3-4-12771-1 by simply removing the dust shield.  Otherwise these yokes are all the same



Spicer
Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series for Ford Dana 60 with 29 spline pinion  ...Strap & Bolt Style
Dana spicer 3-4-5731-1X for Ford with Dana 60
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $49.05

Dana Spicer 3-4-5731-1X

  • PINION YOKE
  • Fits Ford Dana 60, 61, 70 with 29 spline pinion
  • 1350 series
  • OEM Strap and Bolt style
    • Strap and bolt set can be purchased separately at the bottom of this page.

DIMENSIONS

  • Fits 1350 series u-joint 3.625 inches (3 5/8) wide with 1.188 inches (1 3/16) bearing cap diameter
  • SPLINE OD = 1.276
  • D = 1.188
  • E = 3.625
  • Q = 1.500
  • R = 1.875
  • S = 3.000

Genuine Dana Spicer Pinion Yoke

Replaces Dana Spicer 3-4-14531-1 and 3-4-12771-1

  • Dana Spicer 3-4-5731-1X can be used to replace the 3-4-14531-1 and 3-4-12771-1 by simply removing the dust shield.  Otherwise these yokes are all the same.
image/jpeg
Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series for Ford Dana 60 with 29 spline pinion  ...Strap & Bolt Style

Dana spicer 3-4-5731-1X for Ford with Dana 60
