Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

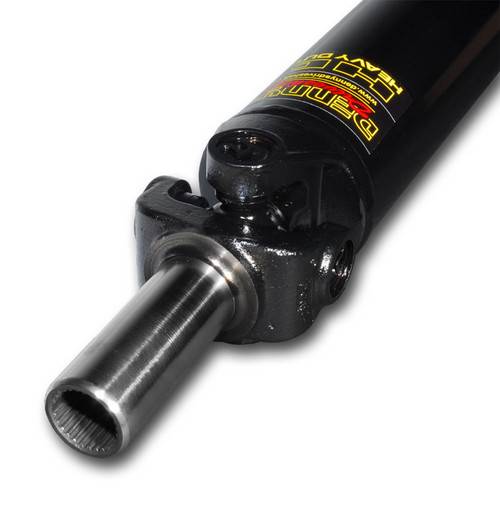

Denny's SRHD35-S1 Street Rod HD Driveshaft 3.5 inch Stage 1 complete with Dana Spicer U-Joints and Sonnax 1310 Forged Slip Yoke
Part Number:
SRHD35-S1


UPC:
Your Cost $655.95
STATUS:  PLEASE CALL TO ORDER

Denny's SRHD35-S1

Street Rod HD Driveshaft 3.5 inch Stage 1 with Sonnax 1310 Slip Yoke

STAGE 1 Includes:

  • Large 3.5 inch Diameter Tube - DOM Steel
  • SONNAX 1310 series FORGED SLIP YOKE
  • Dana Spicer NON Greaseable Universal Joints
    • FRONT universal joint 1310 series to match slip yoke
    • REAR universal joint can be 1310, 1330, 1350, 7260, 7290, 3R to match your rear end pinion yoke.
  • All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation
  • Comes Fully Assembled and ready to bolt in!

Dennys
Denny's SRHD35-S1 Street Rod HD Driveshaft 3.5 inch Stage 1 complete with Dana Spicer U-Joints and Sonnax 1310 Forged Slip Yoke
Denny's SRHD35-S1 Street Rod HD Driveshaft 3.5 inch Stage 1 complete with Dana Spicer U-Joints and Sonnax 1310 Forged Slip Yoke
STATUS:  PLEASE CALL TO ORDER
YOUR COST:  $655.95

Denny's SRHD35-S1

Street Rod HD Driveshaft 3.5 inch Stage 1 with Sonnax 1310 Slip Yoke

STAGE 1 Includes:

  • Large 3.5 inch Diameter Tube - DOM Steel
    • Bigger is better for long length drivelines and also to achieve a higher safe critical speed if needed.
    • "IF YOU CAN POSSIBLY TWIST OUR STREET ROD STEEL DRIVESHAFT TUBING OR BREAK OUR WELDS...WE'LL REPLACE IT FREE"
    • All Denny's Driveshafts are assembled using the latest computer controlled welding equipment for the strongest welds possible.
  • SONNAX 1310 series FORGED SLIP YOKE
    • Available to fit all 27 and 32 spline GM automatic transmissions
    • Available to fit all 27 and 32 spline Muncie, Borg Warner, AutoGear, Saginaw, Richmond
    • Available to fit 28 spline Ford C4 and AOD automatics (NOT available in 1310 for 4R70W see Stage 2 shafts)
    • Available to fit 28 spline T5, T10, Top Loader, Tremec TKO 600, T56 Magnum
  • Dana Spicer NON Greaseable Universal Joints
    • FRONT universal joint 1310 series to match slip yoke
    • REAR universal joint can be 1310, 1330, 1350, 7260, 7290, 3R to match your rear end pinion yoke.
  • All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation.  This is priceless when it comes to customer satisfaction!
  • All Denny's Driveshafts come Fully Assembled and ready to bolt in!
    • Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
      • Please see our Free Lifetime Labor page for details. CLICK HERE



HOW TO MEASURE

You have 2 choices ...see both choices below

CHOICE >>>>>> If your rear end has a u-bolt or strap and bolt style PINION YOKE then use Diagram "B":

  • image/jpeg

CHOICE >>>>>> Use Diagram "K" ONLY if you have a Ford 8.8 or JAG rear with a FLAT FLANGE.

  • PLEASE NOTE:  There will be an Additional cost for the correct flange yoke.
  • MAXIMUM LENGTH restrictions for SRHD35-S1:
