Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

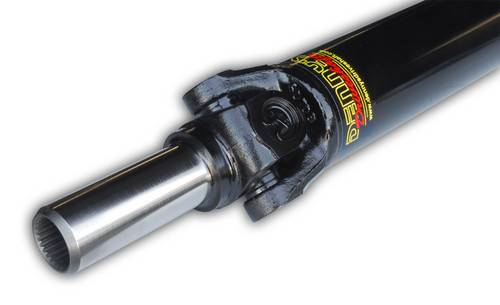

Denny's SRHD3-S1 Street Rod HD Driveshaft 3 inch Stage 1 complete with Dana Spicer U-Joints and Sonnax 1310 Forged Slip Yoke
Part #:
SRHD3-S1
Your Cost $490.95

Denny's SRHD3-S1

3 inch Stage 1 - Street Rod HD Driveshaft with Sonnax 1310 Slip Yoke

STAGE 1 Includes:

  • 3 inch Diameter Tube - DOM Steel
  • SONNAX 1310 series FORGED SLIP YOKE
  • Dana Spicer NON Greaseable Universal Joints
    • FRONT universal joint 1310 series to match slip yoke
    • REAR universal joint can be 1310, 1330, 1350, 7260, 7290, 3R to match your rear end pinion yoke.
  • All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation
  • Comes Fully Assembled and Balanced with slip yoke and universal joints.... ready to bolt in!

Dennys
Denny's SRHD3-S1 Street Rod HD Driveshaft 3 inch Stage 1 complete with Dana Spicer U-Joints and Sonnax 1310 Forged Slip Yoke
Denny's SRHD3-S1 Street Rod HD Driveshaft 3 inch Stage 1 complete with Dana Spicer U-Joints and Sonnax 1310 Forged Slip Yoke
STATUS:  Custom Built...Please allow at least 4 weeks at this time
YOUR COST:  $490.95

OVERSIZE PACKAGE:  Sorry ... this item DOES NOT qualify for Free Shipping!

Denny's SRHD3-S1

Street Rod HD Driveshaft 3 inch Stage 1 with Sonnax 1310 Slip Yoke

Includes:

  • 3 inch Diameter Tube - DOM Steel
    • "IF YOU CAN POSSIBLY TWIST OUR STREET ROD STEEL DRIVESHAFT TUBING OR BREAK OUR WELDS...WE'LL REPLACE IT FREE"
    • All Denny's Driveshafts are built using the latest computer controlled welding equipment for the strongest welds possible.
    • All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation.  This is priceless when it comes to customer satisfaction!
    • All Denny's Driveshafts come Fully Assembled and Balanced with slip yoke and universal joints.... ready to bolt in!
  • SONNAX 1310 series FORGED SLIP YOKE to fit most of the popular transmissions
  • Dana Spicer NON Greaseable Universal Joints
    • FRONT universal joint 1310 series to match slip yoke
    • REAR universal joint can be 1310, 1330, 1350, 7260, 7290, 3R to match your rear end pinion yoke.
      • Flat Flange Yoke option available for Ford 8.8 and JAG rear
  • MAXIMUM LENGTH for 3 inch is 55 inches for Dimension B6 on Diagram "B"
    • Please contact us by email if you require a longer length with a 3 inch tube OD.  CLICK HERE
  • MAXIMUM LENGTH for 3 inch is 57 inches for Dimension 55 on Diagram "K"
    • Please contact us by email if you require a longer length with a 3 inch tube OD.  CLICK HERE
    • Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
      • Please see our Free Lifetime Labor page for details. CLICK HERE



HOW TO MEASURE

You have 2 choices ...see both choices below

CHOICE >>>>>> If your rear end has a u-bolt or strap and bolt style PINION YOKE then use Diagram "B":

  • image/jpeg

CHOICE >>>>>> Use Diagram "K" ONLY if you have a Ford 8.8 or JAG rear with a FLAT FLANGE.
