Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

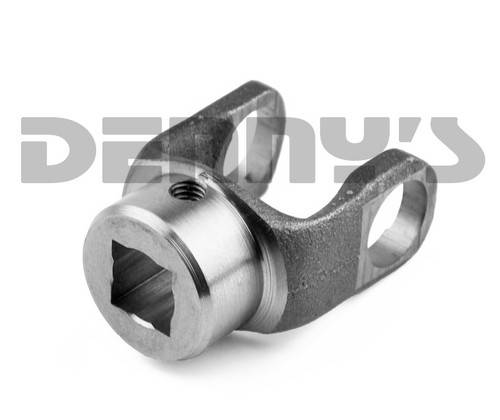

DANA SPICER 10-4-22 PTO End Yoke .750 inch Square Bore with 1000 Series
Part Number:
10-4-22


UPC:
Your Cost $22.61 Sale Price $20.33
You Save $2.28
Sorry, sold out
STATUS:  FACTORY BACK ORDER at this time

DANA SPICER 10-4-22

1000 Series

.750 inch Square Bore PTO End Yoke



Spicer
DANA SPICER 10-4-22 PTO End Yoke .750 inch Square Bore with 1000 Series
DANA SPICER 10-4-22 PTO End Yoke .750 inch Square Bore with 1000 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY BACK ORDER at this time
YOUR COST:  $22.61 Sale Price $20.33
You Save $2.28

DANA SPICER 10-4-22

1000 Series

.750 inch Square Bore PTO End Yoke



End Yokes - Square Bore
Model/Part #:  10-4-22
P) Bore
0.750
Q) Length through hole
1.625
W) Set Screw Dia. .375
K) Inside dimension for C-Clip lockup 1.500
D) Bore dimension for u-joint cap .938
S) C/L to Hub End 2.500



PTO end yokes Square bore at Denny's Driveshafts

DANA SPICER 10-4-22 PTO End Yoke .750 inch Square Bore with 1000 Series

DANA SPICER 10-4-22 PTO End Yoke .750 inch Square Bore with 1000 Series
