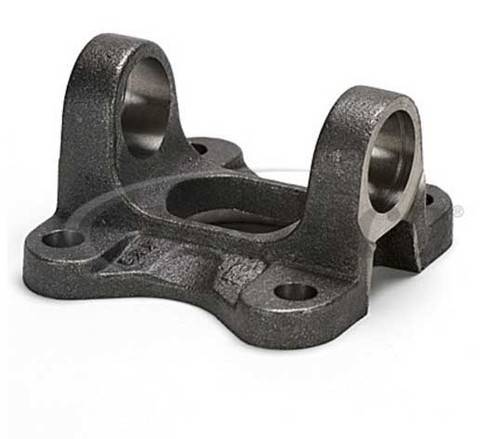

Neapco N3-2-1579 Flange Yoke 1350 Series fits Dana 60, 61, 70 rear ends with 4.25 inch bolt circle companion flange
Part #:
N3-2-1579
Your Cost $37.95

Neapco N3-2-1579

Fits Dana 60, 61, 70 FRONT or REAR Ends with companion flange part number 3462500

  • Large Bolt pattern is square 3 inches by 3 inches
  • Center Pilot Hole Diameter is 2.0 inches
  • 1350 series is 3.625 between snap rings and has 1.188 bearing cap diameter
  • Replaces Dana Spicer 3-2-1579

Neapco
Neapco N3-2-1579 Flange Yoke 1350 Series fits Dana 60, 61, 70 rear ends with 4.25 inch bolt circle companion flange
Neapco N3-2-1579 Flange Yoke 1350 Series fits Dana 60, 61, 70 rear ends with 4.25 inch bolt circle companion flange
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $37.95

Neapco N3-2-1579

Fits Dana 60, 61, 70 FRONT or REAR Ends with companion flange part number 3462500

  • Large Bolt pattern is square 3 inches by 3 inches
  • Center Pilot Hole Diameter is 2.0 inches
  • 1350 series is 3.625 between snap rings and has 1.188 bearing cap diameter
  • Replaces Dana Spicer 3-2-1579
Flange Yokes - Flange Yokes Model/Part #:  N3-2-1579
A.) Flange or Swing Dia. 5.250
B) Bolt Circle Dia. 4.250
Bolt Hole Dia. (NOM) .500-D
Number of Bolt Holes 4
C) Pilot Dia.  F=female 2.000-F
G) Flange Face to C/L 1.625
X) Bolt Pattern center to center 3.0
Y) Bolt Pattern center to center 3.0
U-Joint Width between snap rings
3.625
D) U-Joint cap diameter 1.188
Series 1350

Denny's Driveshafts Flange Yoke Dimension Diagram

Neapco N3-2-1579 Flange Yoke 1350 Series fits Dana 60, 61, 70 rear ends with 4.25 inch bolt circle companion flange

Neapco N3-2-1579 Flange Yoke 1350 Series fits Dana 60, 61, 70 rear ends with 4.25 inch bolt circle companion flange
