Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 3-4-5711-1X Pinion Yoke 1410 series FORD with Dana 60 and 70 with 29 spline pinion Strap & Bolt Style
Part Number:
3-4-5711-1X


UPC:
023913229702

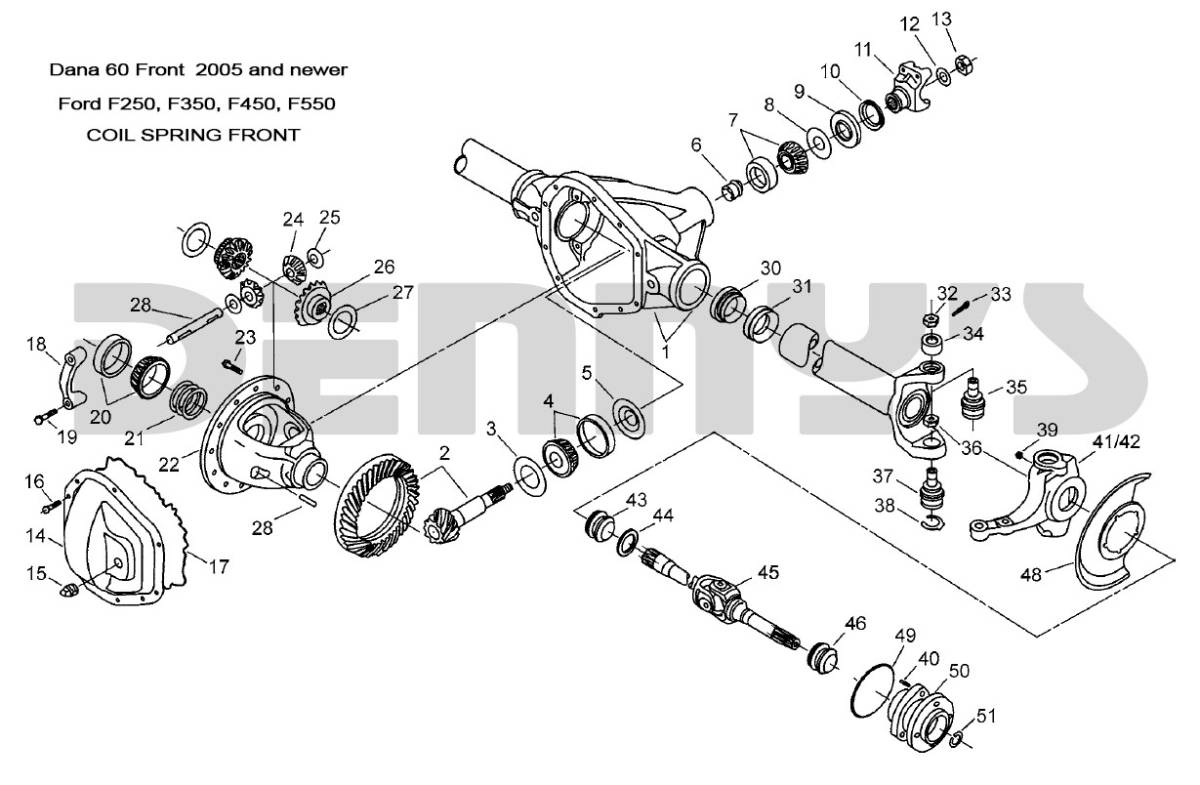

Diagram Number:
11
Your Cost $88.95
STATUS:  IN STOCK

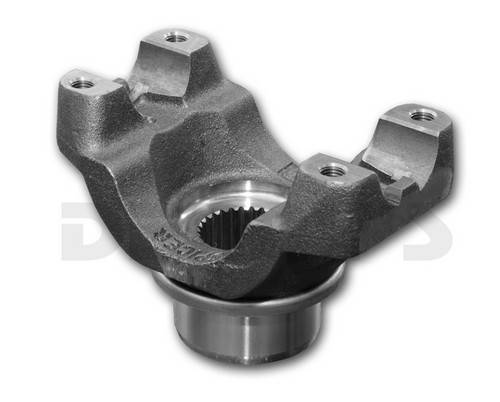

DANA SPICER 3-4-5711-1X

PINION YOKE

  • Fits Ford Dana 60 and 70 with 29 spline pinion
  • 1410 series
  • strap and bolt style
  • SPLINE OD = 1.276
  • D = 1.188
  • E = 4.188
  • Q = 1.500
  • R = 1.875
  • S = 3.188

NOTES:

  • Dana Spicer 3-4-5711-1X is same as 3-4-11891-1X
  • Dana Spicer 3-4-5711-1X replaces 3-4-11851-1


Spicer
Dana Spicer 3-4-5711-1X Pinion Yoke 1410 series FORD with Dana 60 and 70 with 29 spline pinion Strap & Bolt Style
Dana Spicer 3-4-5711-1X Pinion Yoke 1410 series FORD with Dana 60 and 70 with 29 spline pinion Strap & Bolt Style
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $88.95

DANA SPICER 3-4-5711-1X

PINION YOKE

  • Fits Ford Dana 60 and 70 with 29 spline pinion
  • 1410 series
  • strap and bolt style
  • SPLINE OD = 1.276
  • D = 1.188
  • E = 4.188
  • Q = 1.500
  • R = 1.875
  • S = 3.188

NOTES:

  • Dana Spicer 3-4-5711-1X is same as 3-4-11891-1X
  • Dana Spicer 3-4-5711-1X replaces 3-4-11851-1
