Chevrolet > CORVETTE > REAR END PARTS > DANA 44 REAR END 1980 to 1996 > PINION YOKE

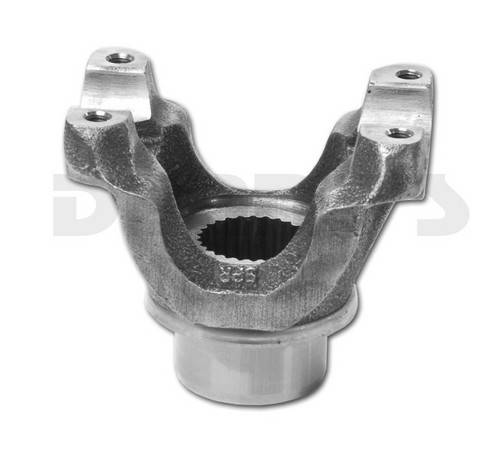

Dana Spicer 2-4-8091-1X Corvette Pinion Yoke fits DANA 44 with 26 spline pinion from 1980 to 1982 OEM 1310 Strap & Bolt Style

Part Number:
2-4-8091-1X

UPC:

023913230050

Your Cost $49.95

STATUS: IN STOCK

DANA SPICER 2-4-8091-1X

1980, 1981, 1982 Corvette Dana 44 1310 series Pinion Yoke 26 spline. Strap and bolt style to match original equipment.

Spicer

Dana Spicer 2-4-8091-1X Corvette Pinion Yoke fits DANA 44 with 26 spline pinion from 1980 to 1982 OEM 1310 Strap & Bolt Style

Dana Spicer 2-4-8091-1X Corvette Pinion Yoke fits DANA 44 with 26 spline pinion from 1980 to 1982 OEM 1310 Strap & Bolt Style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $49.95

DANA SPICER 2-4-8091-1X

1980. 1981, 1982 Corvette Dana 44 1310 series Pinion Yoke 26 spline. Strap and bolt style to match original equipment.

Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
26 splines
Strap & Bolt style....Straps and Bolts sold separately ...see item at bottom of page
SPLINE OD = 1.146
D = 1.062
E = 3.219
Q = 1.500
R = 1.552
S = 3.000

image/jpeg

Dana Spicer 2-4-8091-1X Corvette Pinion Yoke fits DANA 44 with 26 spline pinion from 1980 to 1982 OEM 1310 Strap & Bolt Style

Dana Spicer 2-4-8091-1X Corvette Pinion Yoke fits DANA 44 with 26 spline pinion from 1980 to 1982 OEM 1310 Strap & Bolt Style

You May Also Need These Parts to Complete the Job

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10	Dana Spicer 2-70-18X Strap & Bolt Set for 1980-1996 Corvette rear diff pinion yoke with Dana 36 or Dana 44 rear end Part#: 2-70-18X $7.55
Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings Part#: 5-1310-1X $26.95	Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66
Dana Spicer 5-3613X Universal Joint 1310 Series COATED for ALUMINUM DRIVESHAFTS 3.219 x 1.062 outside snap rings Part#: 5-3613X $22.30
