Driveshaft and Driveline Parts > PINION YOKES - Front and Rear End > Dana > Dana 60, 61 and Dana 70 > 29 SPLINES > 29 splines - 1310 Series

DANA SPICER 2-4-3801-1X Pinion Yoke for DANA 60 1310 series 29 spline Strap and Bolt style

Part Number:
2-4-3801-1X

UPC:

023913232023

Your Cost $58.95

STATUS: IN STOCK

DANA SPICER 2-4-3801-1X

Dana 60 with 29 splines

1310 series Pinion Yoke.

Strap and Bolt Style

Spicer

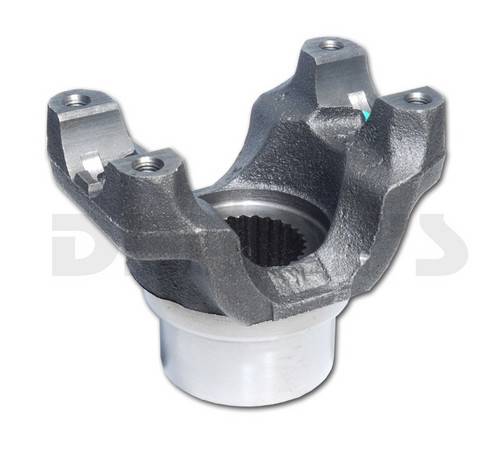

DANA SPICER 2-4-3801-1X Pinion Yoke for DANA 60 1310 series 29 spline Strap and Bolt style

DANA SPICER 2-4-3801-1X Pinion Yoke for DANA 60 1310 series 29 spline Strap and Bolt style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $58.95

DANA SPICER 2-4-3801-1X

Dana 60 with 29 splines 1310 series Pinion Yoke. Strap and Bolt Style.

1310 Series
29 spline
Strap and Bolt Style.. sold separately please see bottom of this page
SPLINE OD = 1.276
D = 1.062
E = 3.219
Q = 1.500
R = 1.875
S = 2.938

NOTES:

Dana Spicer 2-4-3801-1X is same as 2-4-8391-1X

image/jpeg

DANA SPICER 2-4-3801-1X Pinion Yoke for DANA 60 1310 series 29 spline Strap and Bolt style

DANA SPICER 2-4-3801-1X Pinion Yoke for DANA 60 1310 series 29 spline Strap and Bolt style

You May Also Need These Parts to Complete the Job

PINION WASHER - SPICER 30275 Fits DANA 60, 61 and 70 Part#: 30275 $0.35	PINION NUT - SPICER 30271 Fits DANA 60, 61 and 70 Part#: 30271 $0.94
SPICER 42449 - Pinion Seal for DANA 60, 61 and 70 Part#: 42449 $7.59	Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.09
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 ~~$16.53~~ $15.01
Dana Spicer 2-70-18X Strap and Bolt set fits 1.062 bearing cap diameter 1.587 CL on 1210, 1310 and 1330 Dana Spicer pinion yokes and transfer case yokes Part#: 2-70-18X $7.55
