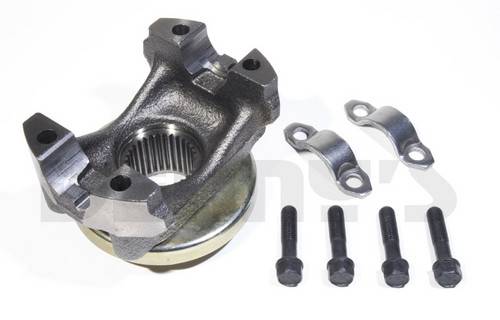

1963-1979 Corvette Pinion Yoke Strap and Bolt Style ALL with 3 5/8 wide rear u-joint 1330 series

Part Number:
9338800

UPC:

Your Cost $113.25

STATUS: IN STOCK - FREE SHIPPING

1963-1979 Corvette Pinion Yoke Strap and Bolt Style

Fits ALL with 3 5/8 wide rear u-joint 1330 series

Fits Corvette model years 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

1975 to 1979 Corvette Pinion Yoke 1330 series

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $113.25

1963-1979 Corvette Pinion Yoke Strap and Bolt Style ALL with 3 5/8 wide rear u-joint 1330 series

Fits Corvette model years 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

Restoration fanatics will appreciate how exact this unit resembles the original OEM GM Corvette Pinion yoke. U-joint size is 3 5/8 inches wide with 1 1/16th inch cap diameter. These will have the same overall dimensions as your original yoke and most importantly for those of you who are looking for “restoration originality” they will look just like the originals. This size was normally used on 1963 to 1979 Corvette with T400 transmission. Comes with Strap and Bolt set, Pinion Nut and Washer. Replace that old worn out original with a new one.

1330 series
- Fits 1330 Series universal joint 3 5/8 inches wide with 1 1/16 inch bearing caps.
1330 Strap and Bolt Set included
Exact match to original equipment pinion yoke
30 splines to fit all 1963 to 1979 CORVETTE differentials
SPLINE OD = 1.328
D = 1.062 (1 1/16 inches)
E = 3.625 (3 5/8 inches)
Q = 1.190
R = 1.740
S = 2.687

1975 to 1979 Corvette Pinion Yoke 1330 series
