9136586 Pinion Yoke U-Bolt style fits 1963-1974 Corvette ALL with 3 7/32 wide rear u-joint 1310 series

Part Number:
9136586

UPC:

Your Cost $105.55

STATUS: IN STOCK - FREE SHIPPING

9136586

1963-1974 Corvette Pinion Yoke U-Bolt Style

Fits ALL with 3 7/32 wide rear u-joint 1310 series
Fits Corvette model years 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 rear ends

30 splines
1310 Series ... see u-joints at bottom of this page
OEM U-Bolt style pinion yoke ... U-Bolt Set included
Exact match to original equipment

INCLUDES

U-Bolts, lock washers and nuts
Pinion Nut and Washer

DIMENSIONS

SPLINE OD = 1.328
D = 1.062
E = 3.219
Q = 1.190
R = 1.740
S = 2.625

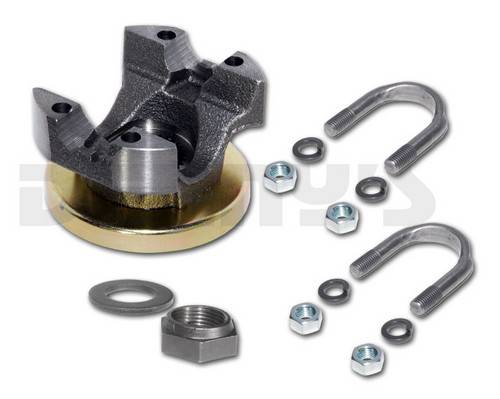

9136586 Pinion Yoke U-Bolt style fits 1963-1974 Corvette ALL with 3 7/32 wide rear u-joint 1310 series

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $105.55

9136586

1963-1974 Corvette Pinion Yoke U-Bolt Style

Fits ALL with 3 7/32 wide rear u-joint 1310 series
Fits Corvette model years 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 rear ends

30 splines
1310 Series ... see u-joints at bottom of this page
OEM U-Bolt style pinion yoke ... U-Bolt Set included
Exact match to original equipment

INCLUDES

U-Bolts, lock washers and nuts
Pinion Nut and Washer

DIMENSIONS

SPLINE OD = 1.328
D = 1.062
E = 3.219
Q = 1.190
R = 1.740
S = 2.625

Restoration fanatics will appreciate how exact this unit resembles the original OEM GM Corvette Pinion yoke. U-joint size is 3 7/32 inches wide with 1 1/16th inch cap diameter. These will have the same overall dimensions as your original yoke and most importantly for those of you who are looking for “restoration originality” they will look just like the originals. This size was normally used from 1963 to 1974 but it will fit all 30 spline 1963 to 1979 Corvette rear differentials. Comes with U-Bolts, Pinion Nut and Washer. Replace that old worn out original with a new one.

9136586 Pinion Yoke U-Bolt style fits 1963-1974 Corvette ALL with 3 7/32 wide rear u-joint 1310 series
Click Here to Enlarge	Click Here to Enlarge

You May Also Need These Parts to Complete the Job

DANA SPICER 5-153X Universal Joint Fits 1953 to 1982 Corvette Driveshaft 1310 Series Greaseable Part#: 5-153X $13.75	DANA SPICER 5-1310X Universal Joint Fits 1953 to 1982 Corvette Driveshaft 1310 Series NON Greaseable Part#: 5-1310X $20.25
TIMKEN 8460N - Pinion Seal fits CORVETTE 1963 to 1979 Part#: 8460N $13.95
