Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

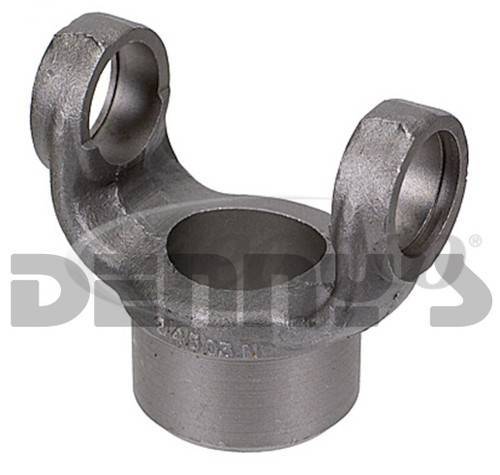

Neapco N2-4-803-1 weld on end yoke 1310 series 1.375 bore use with 2231-3 splined shaft
Neapco N2-4-803-1 weld on end yoke 1310 series 1.375 bore use with 2231-3 splined shaft
$52.19 $47.42 each
Part Number:
N2-4-803-1
$52.19 $47.42 each

Neapco N2-4-803-1

Weld on END Yoke

  • 1310 series
  • 1.375 inch bore
  • Use with 2231-3 splined shaft

Requires machining of bore ID to match diameter of stub OD on 2231-3

Status: IN STOCK
Neapco 53-2415 Splined Sleeve 1.625-10 splines 2.010 butt diameter for long travel offroad driveshaft
Neapco 53-2415 Splined Sleeve 1.625-10 splines 2.010 butt diameter for long travel offroad driveshaft
$67.06 $60.92 each
Part Number:
53-2415
$67.06 $60.92 each

Neapco 53-2415

Splined Sleeve

  • 1.625 inch - 10 splines
  • 2.010 butt diameter
  • Greaseable
  • Can be machined to fit 2.0 x .120 wall DOM Tubing.
    • Must Machine butt diameter down to 1.771 inches to fit 2.0 x .120 wall tubing
  • Can also be machined to fit 2.125 x .188 wall DOM Heavy Wall Tubing
  • Use with 2231-3 splined shaft
  • Use with N2-4-803-1 weld on end yoke

Great for offroad where long suspension travel is a requirement.

Status: IN STOCK
Neapco 53-2415M1 Splined Sleeve 1.625-10 splines 1.850 butt diameter for long travel offroad driveshaft
Neapco 53-2415M1 Splined Sleeve 1.625-10 splines 1.850 butt diameter for long travel offroad driveshaft
$138.55 each
Part Number:
53-2415M1
$138.55 each

Neapco 53-2415M1

Splined Sleeve

  • 1.625 inch - 10 splines
  • 1.850 butt diameter
    • Counterbore your tubing to 1.845 for proper press fit.

Same as 53-2415 except 53-2415M1 has the butt diameter turned down to 1.850 inches

Status: SOLD OUT...More Coming Soon
Neapco 2231-3 Splined Shaft 1.625-10 splines for long travel offroad driveshaft
Neapco 2231-3 Splined Shaft 1.625-10 splines for long travel driveshaft
$210.96 $200.78 each
Part Number:
2231-3
$210.96 $200.78 each

Neapco 2231-3

Splined Shaft

  • 1.625 inch - 10 splines
  • 25.5 inches of available spline
  • Use with 53-2415 splined sleeve
  • Use with N2-4-803-1 weld on end yoke

Great for offroad where long suspension travel is a requirement.

Status: SOLD OUT...More Coming Soon
1350 series weld on end yoke 1.375 bore use with 2231-3 splined shaft
1350 series weld on end yoke 1.375 bore use with 2231-3 splined shaft
$285.95 each
Part Number:
1350-803
$285.95 each

1350-803

Weld on END Yoke

  • 1350 series
  • 1.375 inch bore
  • Use with 2231-3 splined shaft

Status: CUSTOM MACHINED PART...Ships out approx. 2 business days after we receive order
2 x .120 DOM DRIVESHAFT TUBING - 12 INCH LENGTH
2 x .120 DOM DRIVESHAFT TUBING - 12 INCH LENGTH
$23.10 each
Part Number:
2000-120-12
$23.10 each

DRIVESHAFT TUBING - DOM

  • 2 INCH OUTSIDE DIAMETER
  • .120 WALL THICKNESS (1/8 inch)
  • DOM - Drawn over mandrel
  • ASTM A513
  • 12 INCH LENGTH

Status: SOLD OUT...More Coming Soon
2 x .120 DOM DRIVESHAFT TUBING - 24 INCH LENGTH
2 x .120 DOM DRIVESHAFT TUBING - 24 INCH LENGTH
$46.20 each
Part Number:
2000-120-24
$46.20 each

DRIVESHAFT TUBING - DOM

  • 2 INCH OUTSIDE DIAMETER
  • .120 WALL THICKNESS (1/8 inch)
  • DOM - Drawn over mandrel
  • ASTM A513
  • 24 INCH LENGTH

Status: SOLD OUT...More Coming Soon
2 x .120 DOM DRIVESHAFT TUBING - 24 INCH LENGTH - Counterbored to 1.845 ID at one end to fit 53-2415M1 sleeve
2 x .120 DOM DRIVESHAFT TUBING - 24 INCH LENGTH - Counterbored to 1.845 ID at one end to fit 53-2415M1 sleeve
$81.40 each
Part Number:
2000-120-24CB
$81.40 each

2000-120-24CB

DRIVESHAFT TUBING - DOM

2.0 x .120 wall HD tubing

  • 24 INCH LENGTH - Counterbored to 1.845 inch ID at one end to fit 53-2415M1 sleeve
  • 2.0 INCH OUTSIDE DIAMETER
  • .120 WALL THICKNESS
  • DOM - Drawn over mandrel
  • ASTM A513

Great choice for applications requiring additional torsional strength.

Also resists dents from rocks.

Status: Not available at this time
2 x .120 DOM DRIVESHAFT TUBING - 36 INCH LENGTH
2 x .120 DOM DRIVESHAFT TUBING - 36 INCH LENGTH
$69.30 each
Part Number:
2000-120-36
$69.30 each

DRIVESHAFT TUBING - DOM

  • 2 INCH OUTSIDE DIAMETER
  • .120 WALL THICKNESS (1/8 inch)
  • DOM - Drawn over mandrel
  • ASTM A513
  • 36 INCH LENGTH

Status: SOLD OUT...More Coming Soon
DANA SPICER 2-28-1757  Weld Yoke 1310 Series to fit 2 inch .120 wall tube
DANA SPICER 2-28-1757 Weld Yoke 1310 Series to fit 2 inch .120 wall tubing
$22.45 each
Part Number:
2-28-1757
$22.45 each

DANA SPICER 2-28-1757

1310 Series Weld Yoke

Status: IN STOCK
DANA SPICER 3-28-777 Weld Yoke 1350 Series to fit 2 inch .120 wall tube
DANA SPICER 3-28-777 Weld Yoke 1350 Series to fit 2 inch .120 wall tubing
$43.12 $36.11 each
Part Number:
3-28-777
$43.12 $36.11 each

DANA SPICER 3-28-777

1350 Series Weld Yoke



Status: IN STOCK
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings
$19.66 each
Part Number:
5-1310X
$19.66 each

DANA SPICER 5-1310X

  • NON GREASEABLE U-Joint
  • 1310 series
    • A = 3.219 inches wide
    • B = 3.219 inches wide
    • C = 1.062 inch diameter
    • D = 1.062 inch diameter
    • Outside snap rings
  • 5-1310X is the NON greaseable version of the 5-1310-1X

Status: IN STOCK
Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings
Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings
$26.25 each
Part Number:
5-1310-1X
$26.25 each

DANA SPICER 5-1310-1X

  • GREASEABLE U-Joint
    • Grease fitting in end of (1) bearing cap
  • 1310 series
    • A = 3.219 inches wide
    • B = 3.219 inches wide
    • C = 1.062 inch diameter
    • D = 1.062 inch diameter
    • Outside snap rings
  • 5-1310-1X is the greaseable version of the 5-1310X

Status: IN STOCK
13 Matching Results Found
