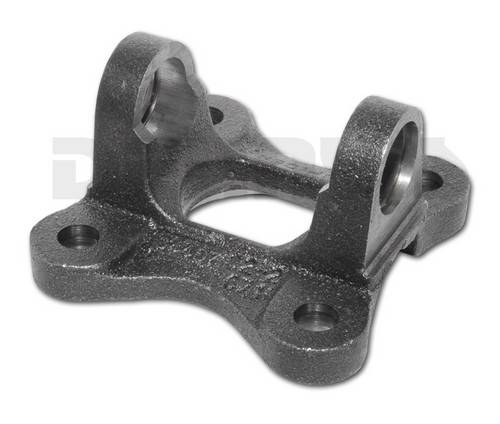

Dana Spicer 2-2-1379 LARGE Bolt Pattern 1310 Series Flange Yoke fits Ford 8.8 inch Rear Ends
Part Number:
2-2-1379


UPC:
023913229436
Your Cost $54.95
STATUS:  IN STOCK

Dana Spicer 2-2-1379

1310 Series Ford Flange Yoke to fit Ford 8.8 inch rear ends with Large Bolt Pattern.

Designed for the LARGE Ford bolt pattern typically found on Full Size Ford Cars, Light Trucks and Cobra Mustang 8.8 rear ends.

Use this flange yoke to connect your 1310 series Jeep Rear Driveshaft to any Ford 8.8 inch rear end with large bolt pattern.



Spicer
Dana Spicer 2-2-1379 LARGE Bolt Pattern 1310 Series Flange Yoke fits Ford 8.8 inch Rear Ends
Dana Spicer 2-2-1379 Flange Yoke 1310 series for JEEP with FORD 8.8 Rear
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $54.95

Dana Spicer 2-2-1379

1310 Series Ford Flange Yoke to fit Ford 8.8 inch rear ends with Large Bolt Pattern.   Designed for the LARGE Ford bolt pattern typically found on Full Size Ford Cars, Light Trucks and Cobra Mustang 8.8 rear ends.

  • A - Flange or Swing Diameter = 5.219 inches
  • B - Bolt Circle Diameter = 4.25 inches
    • Bolt Hole Diameter = .484 inches
    • Bolt Holes = 4
    • Bolt Holes = Drilled
  • C - Center Pilot Hole Diameter = 2.0 inches
    • Center Pilot Hole = Female
  • Series = 1310
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.219 inches (3 7/32 inches)
    • D - U-Joint Bearing cap diameter = 1.062 inches (1 1/16 inches)
  • G - Center of u-joint bore to Face of flange = 1.625 inches
  • X - FORD LARGE Bolt pattern = 3 inches
  • Y - FORD LARGE Bolt pattern = 3 inches

IF YOU REQUIRE the SMALL BOLT PATTERN 1310 Flange Yoke ....CLICK HERE



Denny's Driveshafts Flange Yoke Dimension Diagram

Dana Spicer 2-2-1379 LARGE Bolt Pattern 1310 Series Flange Yoke fits Ford 8.8 inch Rear Ends

Dana Spicer 2-2-1379 Flange Yoke 1310 series for JEEP with FORD 8.8 Rear

Click to Load this Photo
Click Here to Enlarge
Click to Load this Photo
Click Here to Enlarge
