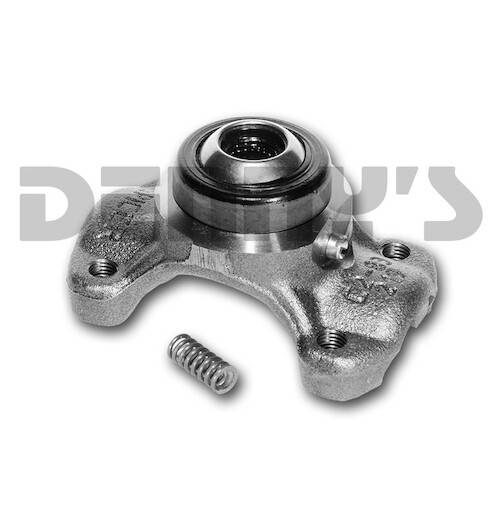

DANA SPICER 211355X Ford CV Centering Yoke 1310 Series
Part #:
211355X
Your Cost $46.95

DANA SPICER 211355X

Ford CV Driveshaft Centering Yoke
1310 Series Includes 4 Grade 8 Bolts and spring



Spicer
DANA SPICER 211355X Ford CV Centering Yoke 1310 Series
Dana Spicer 211355X Centering yoke for FORD F-150, F-250 and Bronco 1310 CV Driveshaft
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $46.95

DANA SPICER 211355X

Ford CV Driveshaft Centering Yoke 1310 Series Includes 4 Grade 8 Bolts

  • Use on any 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint

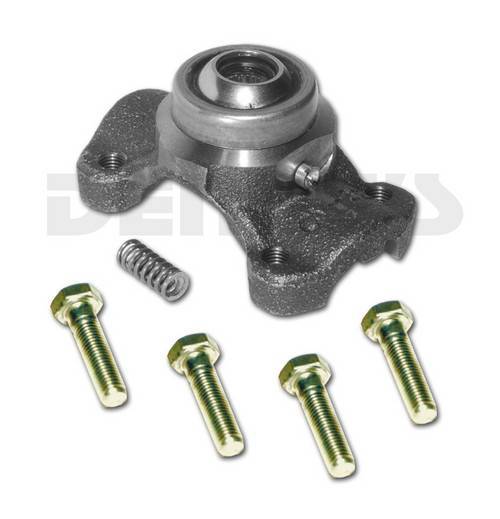

  • Comes with 4 grade 8 bolts
  • Greaseable center ball socket
  • New spring Included

DIMENSIONS
  • Fits 1310 U-Joint
    • (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
    • (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
  • Bolt Holes are 5/16 - 24 fine thread
    • Bolt hole spacing 1.500 inches across u-joint cap
    • Bolt hole spacing 2.343 inches side to side
  • Fits .500 inch stud diameter
INCLUDES
  • New spring Included
  • Comes with (4) grade 8 bolts 5/16 - 24 fine thread
DANA SPICER 211355X Ford CV Centering Yoke 1310 Series

Dana Spicer 211355X Centering yoke for FORD F-150, F-250 and Bronco 1310 CV Driveshaft
