Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

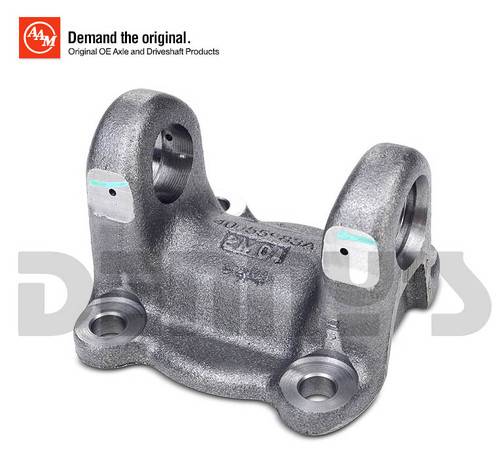

AAM 40055527 FLANGE YOKE 1415 series fits 4.181 x 1.188 u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
Part Number:
40055527


UPC:
Your Cost $115.45 Sale Price $104.01
You Save $11.44
STATUS:  IN STOCK

AAM Part Number 40055527

FLANGE YOKE 1415 Series

  • Fits DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
    • Fits 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
  • OEM Numbers 05183074AB, 5183074AB, 40038506
  • TALLER than 40022500
  • Fits 1415 series u-joint 1.188 inch cap diameter....see u-joint at bottom page
  • Fits 1415 series u-joint 4.181 inches cap to cap
  • Outside Snap Ring style

AAM
AAM 40055527 FLANGE YOKE 1415 series fits 4.181 x 1.188 u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
AAM 40055527 FLANGE YOKE 1415 series fits 4.181 x 1.188 u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $115.45 Sale Price $104.01
You Save $11.44

AAM Part Number 40055527

FLANGE YOKE 1415 Series

  • Fits DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
    • Fits 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
  • OEM Numbers 05183074AB, 5183074AB, 40038506
  • TALLER than 40022500
  • Fits 1415 series u-joint 1.188 inch cap diameter....see u-joint at bottom page
  • Fits 1415 series u-joint 4.181 inches cap to cap
  • Outside Snap Ring style

Dimensions

  • A - Flange or Swing Diameter = 5.875 inches
  • B - Bolt Circle Diameter = 4.750 inches
    • Bolt Hole Diameter = 0.500 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 3.750 inches
    • Center Pilot = MALE
  • Series = 1415
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.181 inches
    • D - U-Joint Bearing cap diameter = 1.188 inches
  • G - Center of u-joint bore to Face of flange = 2.25 inches
  • X - inches = 3.375
  • Y - inches = 3.375
  • Special Notes:



Denny's Driveshafts Flange Yoke Dimension Diagram

AAM 40055527 FLANGE YOKE 1415 series fits 4.181 x 1.188 u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft

AAM 40055527 FLANGE YOKE 1415 series fits 4.181 x 1.188 u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft

You May Also Need These Parts to Complete the Job

AAM 74085339 Universal Joint AAM 1415 series U-Joint DODGE (7064389)
$42.48
