Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits FORD HIGH PINION Dana 60 FRONT differential case 706040X, 706041X, 2005502
Part Number:
706702X


UPC:
023913133382

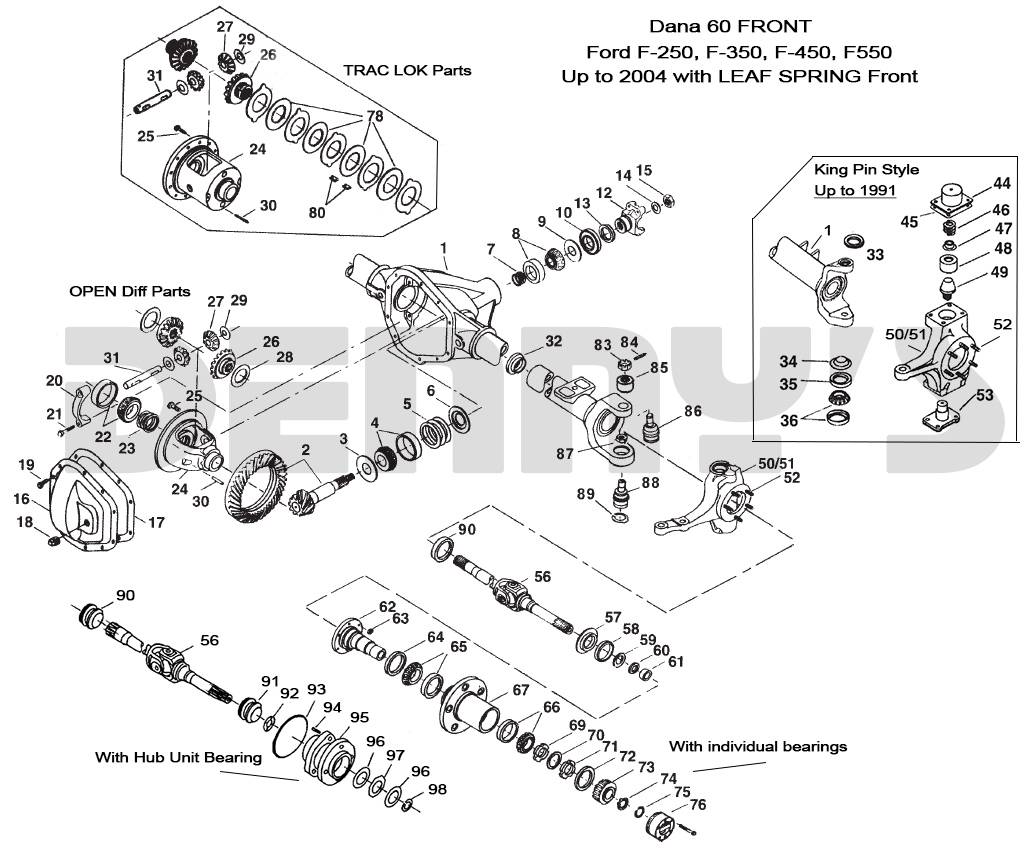

Diagram Number:
26-29
Your Cost $357.41 Sale Price $299.33
You Save $58.08
STATUS:  SOLD OUT...More Coming Soon

Dana Spicer 706702X

DIFFERENTIAL SPIDER GEAR KIT 1.50 - 35 spline

  • Fits FORD F250, F350, F450, F550 with Dana 60 High Pinion Reverse rotation Front Axle
  • DANA 60 OPEN differential for FORD HIGH PINION FRONT
    • OPEN DIFF - NOT positraction
    • Fits 1.50 - 35 spline axles
    • Fits all ratio open diff cases
  • 706702X spider gear kit and 706040X Case are in Dana Spicer loaded case 2005502
  • NOTE: These spider gears (706702X) have the older style original shape to the gear as compared to the newer style formed gears (708236) that look different

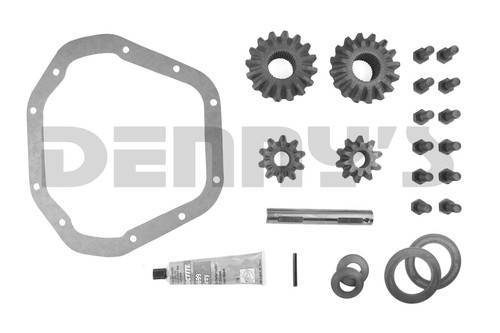

 INCLUDES:

QTY Part Description
2 35625 SIDE SPIDER GEAR 1.50 - 35 SPLINE
2 34367 SMALL SPIDER GEAR
2 34730 CUPPED THRUST WASHER
2 34729 SIDE GEAR FLAT THRUST WASHER
1 30263 DIFF CROSS SHAFT
1 34687 GASKET
1 38615 2.8 OZ TUBE SILICONE
1 44810 ROLL PIN
12 701056X RING GEAR BOLTS



Spicer
Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits FORD HIGH PINION Dana 60 FRONT differential case 706040X, 706041X, 2005502
Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits FORD HIGH PINION Dana 60 FRONT differential case 706040X, 706041X, 2005502
