DANA SPICER 2-3-12411X Transfer Case Slip Yoke Fits JEEP NP231 with EXTENSION HOUSING STYLE REAR OUTPUT
Part #:
2-3-12411X
Your Cost $70.95

DANA SPICER 2-3-12411X

  • Slip Yoke Fits JEEP NP231 Transfer case with EXTENSION HOUSING OUTPUT


Spicer
DANA SPICER 2-3-12411X Transfer Case Slip Yoke Fits JEEP NP231 with EXTENSION HOUSING STYLE REAR OUTPUT
DANA SPICER 2-3-12411X Transfer Case Slip Yoke Fits JEEP NP231 with EXTENSION HOUSING STYLE REAR OUTPUT
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $70.95

DANA SPICER 2-3-12411X

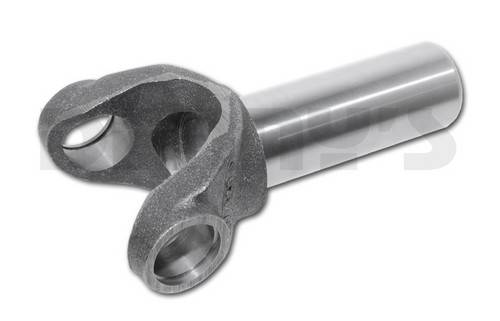

Jeep NP231 Transfer Case Slip Yoke 27 spline Spicer 1310 series.  Used on Jeep models with slip yoke extension housing at rear of transfer case.

  • Has higher operating angle than typical slip yoke.
  • Length to center of u-joint... Dimension #1 = 5 3/4 inches
  • Barrel Diameter... Dimension #2 = 1 1/2 inches
  • Barrel Length... Dimension #3 = 3 13/16 inches
  • U-joint cap diameter... Dimension #4 = 1 1/16 inches
  • U-joint width... Dimension #5 = 3 7/32 inches
  • Series... 1310
  • Spline count... 27
DANA SPICER 2-3-12411X Transfer Case Slip Yoke Fits JEEP NP231 with EXTENSION HOUSING STYLE REAR OUTPUT

DANA SPICER 2-3-12411X Transfer Case Slip Yoke Fits JEEP NP231 with EXTENSION HOUSING STYLE REAR OUTPUT
