Dana Spicer 2-3-4911X Transmission Slip Yoke 1310 series fits all 27 spline manual and automatic transmissions including Powerglide, Turbo 350, T375, 700R, 200R, 4L60, 4L65, Muncie M20, M21, M22, Saginaw, Borg Warner T-5, T-10, T-56, Tremec, Auto Gear

Part Number:
2-3-4911X

UPC:

023913235567

Your Cost ~~$155.95~~ Sale Price $143.66

You Save $12.29

STATUS: IN STOCK - FREE SHIPPING

DANA SPICER 2-3-4911X

Transmission Slip yoke

1310 Series
27 spline
Fits all 27 spline manual and automatic transmissions including Powerglide, Turbo 350, T375, 700R, 200R, 4L60, 4L65, Muncie M20, M21, M22, Saginaw, Borg Warner T-5, T-10, T-56, Tremec
Used most often during late 1960's and early 1970's in Chevy full size, Chevelle, Camaro, Nova and others.
See 2-3-6081X for next generation.
- Overall length is 1/2 inch shorter and has less operating angle than part number 2-3-6081X

Dana Spicer 2-3-4911X Transmission Slip Yoke fits ALL GM transmissions with 27 spline output

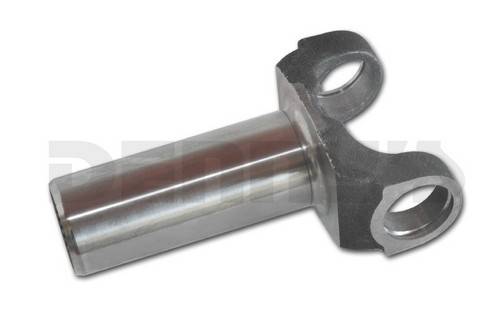

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: ~~$155.95~~ Sale Price $143.66

You Save $12.29

DANA SPICER 2-3-4911X

Transmission Slip yoke

1310 Series
27 spline
Fits all 27 spline manual and automatic transmissions including Powerglide, Turbo 350, T375, 700R, 200R, 4L60, 4L65, Muncie M20, M21, M22, Saginaw, Borg Warner T-5, T-10, T-56, Tremec
Used most often during late 1960's and early 1970's in Chevy full size, Chevelle, Camaro, Nova and others.
See 2-3-6081X for next generation.
- Overall length is 1/2 inch shorter and has less operating angle than part number 2-3-6081X

Length to center of u-joint... Dimension #1 = 4.875 inches
Barrel Diameter... Dimension #2 = 1.500 inches
Barrel Length... Dimension #3 = 3.625 inches
U-joint cap diameter... Dimension #4 = 1.062 inches
U-joint width... Dimension #5 = 3.219 inches
Series... 1310
Lockup...OUTSIDE Snap Ring
Spline count... 27
Spline outside diameter...1.176

Dana Spicer 2-3-4911X Transmission Slip Yoke fits ALL GM transmissions with 27 spline output
