Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

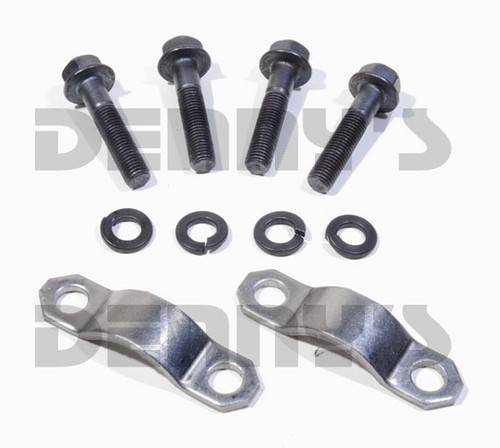

Neapco 1-0025 strap and bolt set fits Inside "C" Clip Style GM 7.5, 7.6, 8.5, 8.6 10 Bolt and 9.5 inch 14 bolt with 3R Series Pinion Yoke designed for 1.125 bearing cap
Part #:
1-0025
Your Cost $4.95

NEAPCO 1-0025

  • GM 3R Series Strap & Bolt Set
  • Fits GM 7.5, 7.6, 8.5, 8.6 inch 10 bolt rear end with Inside "C" Clip Style Pinion Yoke
  • Fits GM 9.5 inch 14 bolt rear end with Inside "C" Clip Style Pinion Yoke
    • Fits 1.125 bearing caps
  • Strap and bolt set comes with (2) Straps (4) 5/16 fine thread Bolts.
  • Replace that old stretched out original set with a new one.
  • Same as Dana Spicer 2-70-48X

BEARING SIZE: 1.125
BOLT HOLE DIAMETER: 0.330
CL TO CL: 1.812
Fits SERIES: 3R
BOLT LENGTH UNDER HEAD: 1.500
STRAP WIDTH: 0.620
THREAD SIZE: 0.312 - 24 (5/16 diameter)

Neapco
Neapco 1-0025 strap and bolt set fits Inside "C" Clip Style GM 7.5, 7.6, 8.5, 8.6 10 Bolt and 9.5 inch 14 bolt with 3R Series Pinion Yoke designed for 1.125 bearing cap
Neapco 1-0025 strap and bolt set fits Inside "C" Clip Style GM 7.5, 7.6, 8.5, 8.6 10 Bolt and 9.5 inch 14 bolt with 3R Series Pinion Yoke designed for 1.125 bearing cap
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $4.95

NEAPCO 1-0025

  • GM 3R Series Strap & Bolt Set
  • Fits GM 7.5, 7.6, 8.5, 8.6 inch 10 bolt rear end with Inside "C" Clip Style Pinion Yoke
  • Fits GM 9.5 inch 14 bolt rear end with Inside "C" Clip Style Pinion Yoke
    • Fits 1.125 bearing caps
  • Strap and bolt set comes with (2) Straps (4) 5/16 fine thread Bolts.
  • Replace that old stretched out original set with a new one.
  • Same as Dana Spicer 2-70-48X

BEARING SIZE: 1.125
BOLT HOLE DIAMETER: 0.330
CL TO CL: 1.812
Fits SERIES: 3R
BOLT LENGTH UNDER HEAD: 1.500
STRAP WIDTH: 0.620
THREAD SIZE: 0.312 - 24 (5/16 diameter)

Be sure to replace your existing strap and bolt set to eliminate the chance of the u-joint cap rotating in the pinion yoke and permanently damaging it.  When this happens the damage to the pinion yoke usaully allows the universal joint to move from side to side within the yoke and the resulting looseness will surely cause a nagging vibration. The strap is designed to conform to the shape of the universal joint bearing cap when the bolts are tightened to the proper torque spec and is also designed to apply the proper amount of pressure to hold the bearing cap from rotating within the yoke.  Reusing the straps many times will lessen their ability to apply the right holding pressure....this is why you should replace them...it's much cheaper and easier to replace than a new pinion yoke.

Neapco 1-0025 strap and bolt set fits Inside "C" Clip Style GM 7.5, 7.6, 8.5, 8.6 10 Bolt and 9.5 inch 14 bolt with 3R Series Pinion Yoke designed for 1.125 bearing cap

Neapco 1-0025 strap and bolt set fits Inside "C" Clip Style GM 7.5, 7.6, 8.5, 8.6 10 Bolt and 9.5 inch 14 bolt with 3R Series Pinion Yoke designed for 1.125 bearing cap
