Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

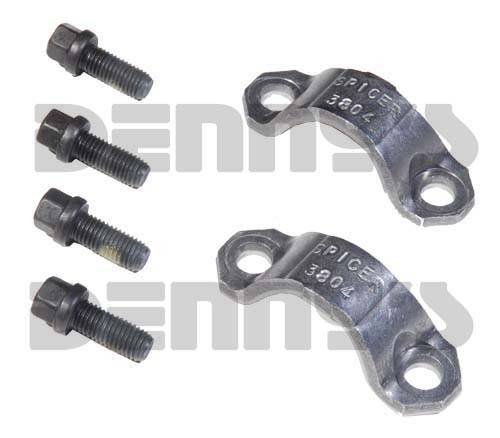

Dana Spicer 2-70-18X Strap and Bolt set fits JEEP 1310 and 1330 Dana Spicer pinion yokes and transfer case yokes designed for 1.062 diameter u-joint bearing caps
Part #:
2-70-18X
Your Cost $6.55

DANA SPICER 2-70-18X

  • Strap and Bolt Set
    • Fits all JEEP 1310 and 1330 series Dana Spicer strap and bolt style pinion yokes and transfer case yokes
    • Comes with (2) steel straps and (4) bolts
  • CENTER to CENTER of BOLT HOLES:  1.587
    • BE SURE your yoke has 4 threaded holes and 2 locating tabs

Spicer
Dana Spicer 2-70-18X Strap and Bolt set fits JEEP 1310 and 1330 Dana Spicer pinion yokes and transfer case yokes designed for 1.062 diameter u-joint bearing caps
Dana Spicer 2-70-18X Strap and Bolt set fits JEEP 1310 and 1330 Dana Spicer pinion yokes and transfer case yokes designed for 1.062 diameter u-joint bearing caps
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $6.55

DANA SPICER 2-70-18X

  • Strap and Bolt Set
    • Fits all JEEP 1310 and 1330 series Dana Spicer strap and bolt style pinion yokes and transfer case yokes
    • Comes with (2) steel straps and (4) bolts
  • CENTER to CENTER of BOLT HOLES:  1.587
    • BE SURE your yoke has 4 threaded holes and 2 locating tabs

Be sure to replace your existing strap and bolt set to eliminate the chance of the u-joint cap rotating in the pinion yoke and permanently damaging it.  When this happens the damage to the pinion yoke usaully allows the universal joint to move from side to side within the yoke and the resulting looseness will surely cause a nagging vibration. The strap is designed to conform to the shape of the universal joint bearing cap when the bolts are tightened to the proper torque spec and is also designed to apply the proper amount of pressure to hold the bearing cap from rotating within the yoke.  Reusing the straps many times will lessen their ability to apply the right holding pressure....this is why you should replace them...it's much cheaper and easier to replace than a new pinion yoke.


Model/Part #:  2-70-18X
Series 1210/1310/1330
Fits Brg. Cap Dia. 1.062
Thread Dia. .250-28
Bolt Length .625
Strap No. 2-70-59
Bolt No. 231401
C/L to C/L 1.587
Bolt Torque (lb.ft) 13-18







Dana Spicer 2-70-18X Strap and Bolt set fits JEEP 1310 and 1330 Dana Spicer pinion yokes and transfer case yokes designed for 1.062 diameter u-joint bearing caps

Dana Spicer 2-70-18X Strap and Bolt set fits JEEP 1310 and 1330 Dana Spicer pinion yokes and transfer case yokes designed for 1.062 diameter u-joint bearing caps
