Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

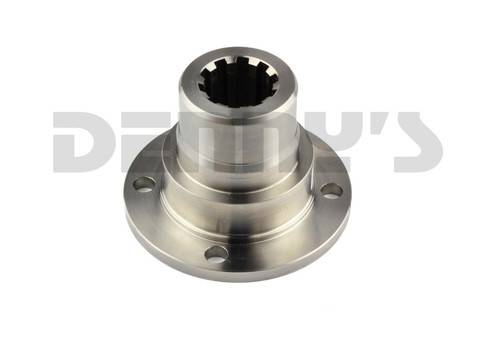

DANA SPICER 3-1-3341 Companion Flange 1350/1410 Series 1.500 x 10 spline with 2.250 Hub
Part Number:
3-1-3341


UPC:
023913234492
Your Cost $362.95 Sale Price $338.71
You Save $24.24
STATUS:  FACTORY DIRECT TO YOU

DANA SPICER 3-1-3341

  • COMPANION FLANGE
  • 1350/1410 Series
  • 1.500 - 10 SPLINE

Spicer
DANA SPICER 3-1-3341 Companion Flange 1350/1410 Series 1.500 x 10 spline with 2.250 Hub
DANA SPICER 3-1-3341 Companion Flange 1350/1410 Series 1.500 x 10 spline with 2.250 Hub
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $362.95 Sale Price $338.71
You Save $24.24

DANA SPICER 3-1-2431

  • COMPANION FLANGE
  • 1350/1410 Series



Companion Flanges - Splined Hole Model/Part #:  3-1-3341
D.) Spline OD 1.500
No. of Splines 10
C) Pilot Dia. M=male F=female 2.750F
B) Bolt Circle Dia. 3.750
Bolt Hole Dia. (D-drilled T=tapped) .438-D
No. of Holes 4
Drum Pilot Dia. 3.112
E) Hub Dia. 2.250
F) Len thru Hole 2.188
G) Flg. Face to Hub End 3.062
Figure 2
Slinger Part No.
Series 1350/1410






image/jpeg
DANA SPICER 3-1-3341 Companion Flange 1350/1410 Series 1.500 x 10 spline with 2.250 Hub

DANA SPICER 3-1-3341 Companion Flange 1350/1410 Series 1.500 x 10 spline with 2.250 Hub
