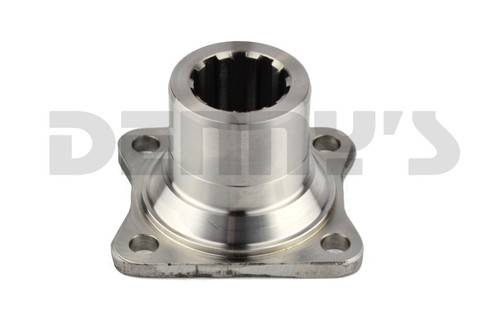

DANA SPICER 3-1-2431 Companion Flange 1350/1410 Series 1.500 x 10 spline with 2.125 Hub
Part Number:
3-1-2431


UPC:
023913235680
Your Cost $174.72 Sale Price $158.33
You Save $16.39
STATUS:  IN STOCK - FREE SHIPPING

DANA SPICER 3-1-2431

  • COMPANION FLANGE
  • 1350/1410 Series
  • 1.500 - 10 SPLINE

Spicer
DANA SPICER 3-1-2431 Companion Flange 1350/1410 Series 1.500 x 10 spline with 2.125 Hub
DANA SPICER 3-1-2431 Companion Flange 1350/1410 Series 1.500 x 10 spline with 2.125 Hub
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $174.72 Sale Price $158.33
You Save $16.39

DANA SPICER 3-1-2431

  • COMPANION FLANGE
  • 1350/1410 Series



Companion Flanges - Splined Hole Model/Part #:  3-1-2431
D.) Spline OD 1.500
No. of Splines 10
C) Pilot Dia. M=male F=female 2.750F
B) Bolt Circle Dia. 3.750
Bolt Hole Dia. (D-drilled T=tapped) .438-D
No. of Holes 4
Drum Pilot Dia. 3.000
E) Hub Dia. 2.125
F) Len thru Hole 2.000
G) Flg. Face to Hub End 2.438
Figure 1
Slinger Part No.
Series 1350/1410
