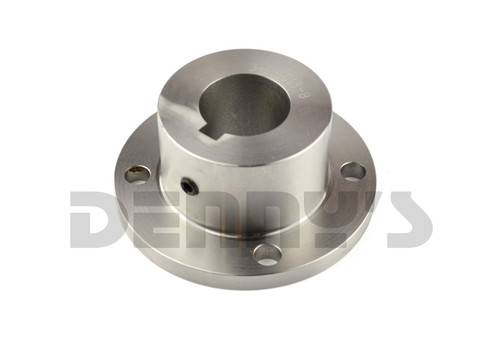

DANA SPICER 3-1-1013-8 Companion Flange 1350/1410 Series Fits 1.500 inch Round Shaft with .375 KEY
Part Number:
3-1-1013-8


UPC:
023913232740
Your Cost $189.95 Sale Price $135.95
You Save $54.00
STATUS:  IN STOCK

DANA SPICER 3-1-1013-8

  • COMPANION FLANGE
  • 1350/1410 Series
  • Same as NEAPCO N3-1-1013-8

Spicer
DANA SPICER 3-1-1013-8 Companion Flange 1350/1410 Series Fits 1.500 inch Round Shaft with .375 KEY
DANA SPICER 3-1-1013-8 Companion Flange 1350/1410 Series Fits 1.500 inch Round Shaft with .375 KEY
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $189.95 Sale Price $135.95
You Save $54.00

DANA SPICER 3-1-1013-8

  • COMPANION FLANGE
  • 1350/1410 Series
  • Same as NEAPCO N3-1-1013-8
Companion Flanges - Circular w/ Round Hole Model/Part #:  3-1-1013-8
D.) Bore Dia. 1.500
K) Keyway Width (nom.) .375
C) Pilot Dia. M=male F=female 2.750-F
Figure 1
Bolt Hole Dia. (D-drilled T=tapped) .438 D
Bolt Holes 4
E) Hub Dia. 2.875
F) Flg. Face to Hub End 2.000
A) Flange Diameter 4.562
B) Bolt Circle Diameter 3.750



Denny's Driveshafts Companion Flange Dimensions

DANA SPICER 3-1-1013-8 Companion Flange 1350/1410 Series Fits 1.500 inch Round Shaft with .375 KEY

DANA SPICER 3-1-1013-8 Companion Flange 1350/1410 Series Fits 1.500 inch Round Shaft with .375 KEY
