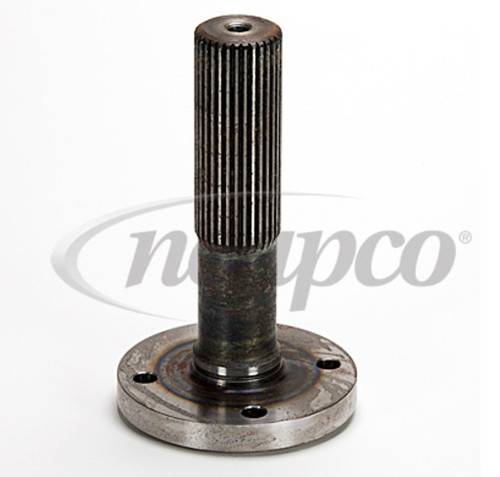

NEAPCO N2-81-1181 FRONT DRIVESHAFT spline shaft with flange for CV fits NVG 246 AutoTrac Transfer Case 1999 and newer GM 4x4
Part #:
N2-81-1181
Your Cost $95.95

NEAPCO N2-81-1181

GM AutoTrac NVG 246 FRONT Driveshaft splined shaft fits 1999 and newer GM 4x4

Transfer Case Splined Shaft with flange to mount 1310 Double Cardan CV Driveshaft

32 spline



Neapco
NEAPCO N2-81-1181 FRONT DRIVESHAFT spline shaft with flange for CV fits NVG 246 AutoTrac Transfer Case 1999 and newer GM 4x4
NEAPCO N2-81-1181 FRONT DRIVESHAFT spline shaft with flange for CV fits NVG 246 AutoTrac Transfer Case 1999 and newer GM 4x4
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $95.95

NEAPCO N2-81-1181

GM AutoTrac NVG 246 FRONT Driveshaft splined shaft fits 1999 and newer GM 4x4

Transfer Case Splined Shaft with flange to mount 1310 Double Cardan CV Driveshaft

32 spline

This 32 spline shaft is used on Chevy and GMC front 4x4 driveshaft where splined shaft goes into the front output of transfer case.

The Auto Trac transfer case is found on many

  • GM-K series 4X4s 1998 through 2007
  • Hummer H2 2003 through 2007
  • GM-G series Vans 2003 through 2006
  • 32 splines
  • Requires rubber boot to seal transfer case output...see bottom of this page for rubber boot
  • Dimensions BOLT CIRCLE: 3.00
    DL SERIES: 1310
    FLANGE FACE TO END: 6.38
    HOLE/THREAD SIZE: 0.38
    NUMBER OF BOLT HOLES: 4
    PILOT DIAMETER: 2.00-M
    SPLINE / NUMBER TEETH: 1.375-32
NEAPCO N2-81-1181 FRONT DRIVESHAFT spline shaft with flange for CV fits NVG 246 AutoTrac Transfer Case 1999 and newer GM 4x4

NEAPCO N2-81-1181 FRONT DRIVESHAFT spline shaft with flange for CV fits NVG 246 AutoTrac Transfer Case 1999 and newer GM 4x4
