Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

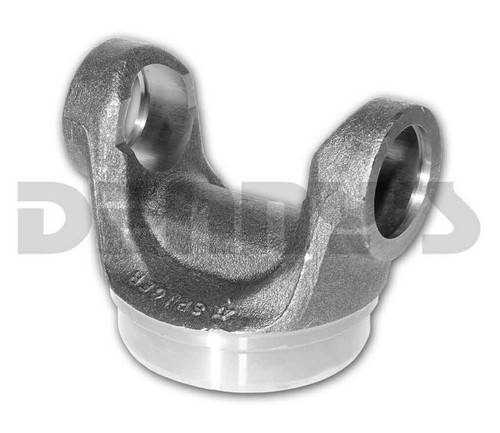

DANA SPICER 3-28-537 Weld Yoke 1480 Series to fit 3.5 inch .083 wall tubing
Part #:
3-28-537
Your Cost $32.50

DANA SPICER 3-28-537

1480 Series Weld Yoke



Spicer
DANA SPICER 3-28-537 Weld Yoke 1480 Series to fit 3.5 inch .083 wall tubing
DANA SPICER 3-28-537 Weld Yoke 1480 series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $32.50

DANA SPICER 3-28-537

1480 Series Weld Yoke

  • Fits 3.5 inch OD X .083 wall tubing
    • F - Butt Diameter = 3.345
  • Series = 1480
  • Lock up style = OUTSIDE SNAP RING
  • E - Universal Joint Width = 4.187
  • D - Universal Joint Bore = 1.375
  • H - Center of u-joint bore to point of weld = 2.031
  • Special Notes: USE KIT 5-188X, SPL55X



CLICK HERE : For ALL DANA SPICER Weld Yoke Part Numbers, Specifications and Dimensions

image/jpeg
DANA SPICER 3-28-537 Weld Yoke 1480 Series to fit 3.5 inch .083 wall tubing

DANA SPICER 3-28-537 Weld Yoke 1480 series

You May Also Need These Parts to Complete the Job

Dana Spicer 5-188X UNIVERSAL JOINT - 1480 series Greaseable U-joint for Diesel trucks
$22.95
DANA SPICER SPL55X UNIVERSAL JOINT 1480 series Maintenance Free U-joint for Diesel trucks
$36.95
