Dana Spicer 3-3-508KX Slip Yoke 1410 series 16 spline 7.812 inches
Part Number:
3-3-508KX


UPC:
023913228828
Your Cost $81.95
STATUS:  IN STOCK

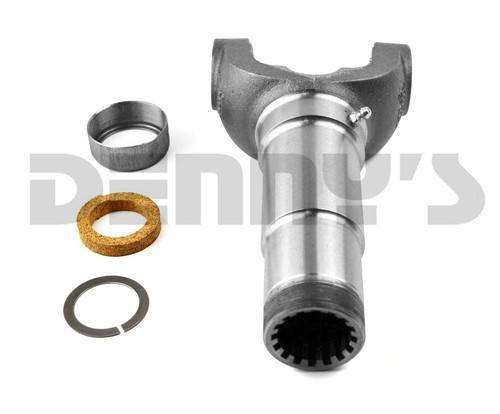

DANA SPICER 3-3-508KX

1410 series Slip Yoke

Fits Spline and Slip Style Driveshaft

  • It will fit in place of the original slip yoke on any 16 spline driveshaft with a spline diameter of 1.5 inches
  • 16 splines and 1.5 inch Spline Diameter
  • 7.812 inches from center of u-joint bearing cap to end of yoke with seal removed.

SAME AS - ALTERNATE



Spicer
Dana Spicer 3-3-508KX Slip Yoke 1410 series 16 spline 7.812 inches
Dana Spicer 3-3-508KX Slip Yoke 1410 series 16 spline 7.812 inches
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $81.95

DANA SPICER 3-3-508KX

1410 series Slip Yoke

Fits Spline and Slip Style Driveshaft

It will fit in place of the original slip yoke on any 16 spline driveshaft with a spline diameter of 1.5 inches

Designed for 1410 series u-joint.  See bottom of this page for 1410 series u-joints

  • 4 3/16 inches between snap rings
  • 1 3/16 diameter bearing caps

16 splines and 1.5 inch Spline Diameter

  • Fits 16 spline driveshaft with 1.5 spline Diameter
    • For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
    • Spline Drawing copyright Denny's Driveshafts
  • Includes SCREW on seal
  • 7.812 inches from center of u-joint bearing cap to end of yoke with seal removed.
    • Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed
    • Slip Yoke Drawing copyright Denny's Driveshafts



SAME AS - ALTERNATE

Dana Spicer 3-3-508KX Slip Yoke 1410 series 16 spline 7.812 inches

Dana Spicer 3-3-508KX Slip Yoke 1410 series 16 spline 7.812 inches

You May Also Need These Parts to Complete the Job

Dana Spicer 5-160X Universal Joint 1410 Series
$24.91
Dana Spicer 5-1410X Universal Joint 1410 Series NON Greaseable
$31.70
