Dana Spicer 706570X SPINDLE with bearing and seals BIG Bearing style fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with DANA 44 or 8.5 inch 10 bolt front axle - FREE SHIPPING
Part Number:
706570X


UPC:
Your Cost $263.50 Sale Price $250.23
You Save $13.27
Sorry, sold out
STATUS:  FACTORY BACK ORDER at this time

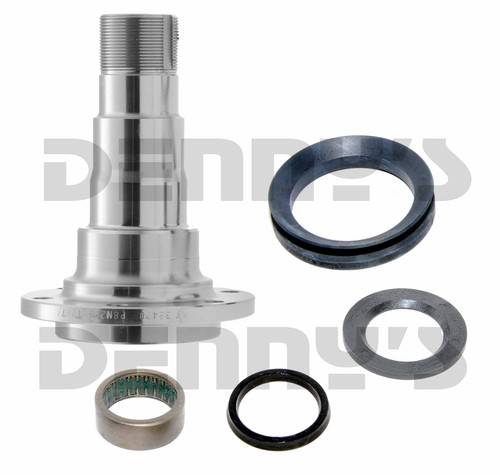

DANA SPICER 706570X

SPINDLE with bearing and seal kit

  • Comes with 706527X splindle beaing and seal kit
  • Comes with inner spindle bearing installed at the proper depth.

Fits CHEVY K5 Blazer with Dana 44 or GM 8.5 inch 10 bolt front axle

  • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits CHEVY K10, K20 with Dana 44 or GM 8.5 inch 10 bolt front axle

  • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

Fits GMC JIMMY with Dana 44 or GM 8.5 inch 10 bolt front axle

  • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits GMC K15, K25 with Dana 44 or GM 8.5 inch 10 bolt front axle

  • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

6 bolt holes

Big bearing style

Spicer
Dana Spicer 706570X SPINDLE with bearing and seals BIG Bearing style fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with DANA 44 or 8.5 inch 10 bolt front axle - FREE SHIPPING
Dana Spicer 706570X SPINDLE with bearing and seals BIG Bearing style fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with DANA 44 or 8.5 inch 10 bolt front axle - FREE SHIPPING
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY BACK ORDER at this time
YOUR COST:  $263.50 Sale Price $250.23
You Save $13.27
This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

DANA SPICER 706570X

SPINDLE with bearing and seal kit

  • Comes with 706527X splindle beaing and seal kit
  • Comes with inner spindle bearing installed at the proper depth.

Fits CHEVY K5 Blazer with Dana 44 or GM 8.5 inch 10 bolt front axle

  • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits CHEVY K10, K20 with Dana 44 or GM 8.5 inch 10 bolt front axle

  • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

Fits GMC JIMMY with Dana 44 or GM 8.5 inch 10 bolt front axle

  • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits GMC K15, K25 with Dana 44 or GM 8.5 inch 10 bolt front axle

  • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

6 bolt holes

Big bearing style

DIMENSIONS

  • A = 1-5/8 in. OD for Outer Wheel Bearing
  • B = 2 in. OD for Inner Wheel Bearing
  • C = 2-1/2 in. OD for Seal
  • D = 3-3/8 in.
  • E = 7/16 in.
  • F = 3/8 in.
  • G = 5-5/8 in.
  • H = 6-7/16 in.
  • K = 4-3/4 in.
  • Bolt Holes = 6
  • Bolt Hole Diameter = .390 in.

How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts

Dana Spicer 706570X SPINDLE with bearing and seals BIG Bearing style fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with DANA 44 or 8.5 inch 10 bolt front axle - FREE SHIPPING

Dana Spicer 706570X SPINDLE with bearing and seals BIG Bearing style fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with DANA 44 or 8.5 inch 10 bolt front axle - FREE SHIPPING

You May Also Need These Parts to Complete the Job

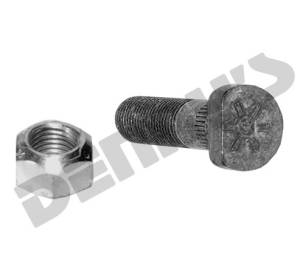

Dana Spicer 36326-2 Spindle Stud Bolt and Nut 3/8 - 24 fits 1977 to 1991 Chevy and GMC front spindle all with 8.5 inch 10 BOLT front axle
$1.79

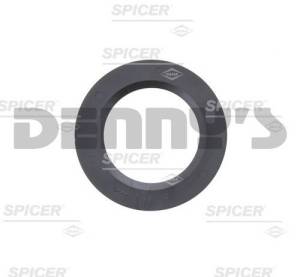

Dana Spicer 38106 thrust washer for inner bearing on front spindle
$2.48
Dana Spicer 38128 V-Ring Rubber Seal fits Dana 30, 44 front spindle
$5.59

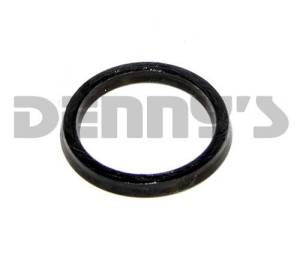

Dana Spicer 36361 V-Ring Rubber Seal fits Dana 44 front spindle
$5.66

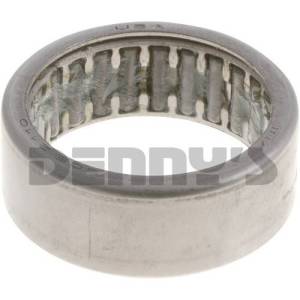

DANA SPICER 550759 Needle Bearing fits front spindle Jeep, Chevy, Ford, Dodge and IH with Dana 30 or Dana 44 front
$12.14
Dana Spicer 706527X Spindle Bearing and Seal Set fits 1973 and newer Chevy K5, K10, K20, GMC Jimmy, K15, K25 with DANA 44 front axle
$14.24
Dana Spicer 706570X SPINDLE with bearing and seals BIG Bearing style fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with DANA 44 or 8.5 inch 10 bolt front axle - FREE SHIPPING
$263.50 $250.23

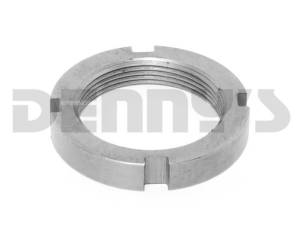

DANA SPICER 31139 Outer Spindle Nut for Chevy and GMC K5, K10, K20 with GM 8.5 inch FRONT
$6.34

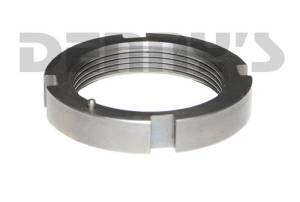

DANA SPICER 21588X Inner Spindle Nut WITH PIN for Chevy and GMC K5, K10, K20 with GM 8.5 inch FRONT
