Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

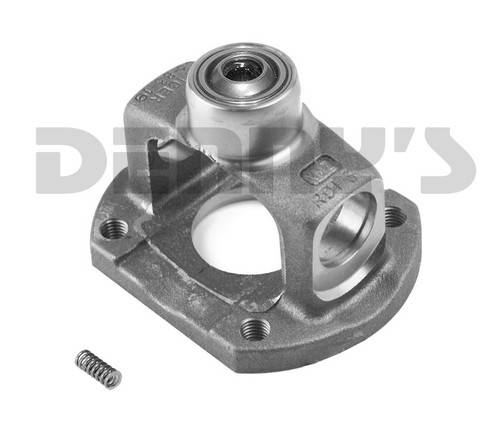

Dana Spicer 212024X CV Flange Yoke 1350 Series Double Cardan fits FORD transfer case with 2 inch pilot
Part Number:
212024X


UPC:
023913229542
Your Cost $91.48
STATUS:  IN STOCK

DANA SPICER 212024X

  • Double Cardan CV Flange Yoke
  • 1350 Series
  • Fits FORD 4X4 transfer case with 2 inch pilot
  • DOES NOT FIT any greaseable style 1350 series stud yokes
  • DOES NOT FIT OEM Driveshaft with press on ball.
    • Please see the bottom of this page for new rubber boot

    image/jpeg





Spicer
Dana Spicer 212024X CV Flange Yoke 1350 Series Double Cardan fits FORD transfer case with 2 inch pilot
Dana Spicer 212024X CV Flange Yoke 1350 Series Double Cardan FORD transfer case with 2 inch pilot
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $91.48

DANA SPICER 212024X

  • Double Cardan CV Flange Yoke
  • 1350 Series
  • Fits FORD 4X4 transfer case with 2 inch pilot
    • 4 Mounting holes are THREADED to accept OEM Ford bolts
    • Bolt Pattern.... 4.25 inches measured diagonally
    • Pilot Diameter... 2 inches
    • Needle Bearing Ball Socket fits 1/2 inch stud yoke
    • NON greaseable Maintenance Free
    • Comes with New Spring included
    • Dimension between outside snap rings...(3.625 inches) 3 5/8 inches
    • Designed to fit (1.187 inches) 1 3/16 inch U-Joint Bearing cap
  • DOES NOT FIT any greaseable style 1350 series stud yokes
  • DOES NOT FIT OEM Driveshaft with press on ball.
  • Use with 1350 Series U-Joints listed below.

IMPORTANT: The "SPICER" name must be visible on your original H-Yoke and Flange yoke to use these replacement parts.

If you have a driveshaft that looks like the one in these photos then this cv will NOT work.

  • Please notice the shape of the mounting flange...if yours looks like the mounting flange in the photo on the left then this CV will not fit.
  • Please notice the squared shape of the H-Yoke around the holes for the u-joint cap and snap ring in the photo on the right. ... If yours has the squared shape then this CV will not fit.
  • If you have a driveshaft with a pressed on ball on the cv stud yoke then this cv will NOT work.









Dana Spicer 212024X CV Flange Yoke 1350 Series Double Cardan fits FORD transfer case with 2 inch pilot

Dana Spicer 212024X CV Flange Yoke 1350 Series Double Cardan FORD transfer case with 2 inch pilot
