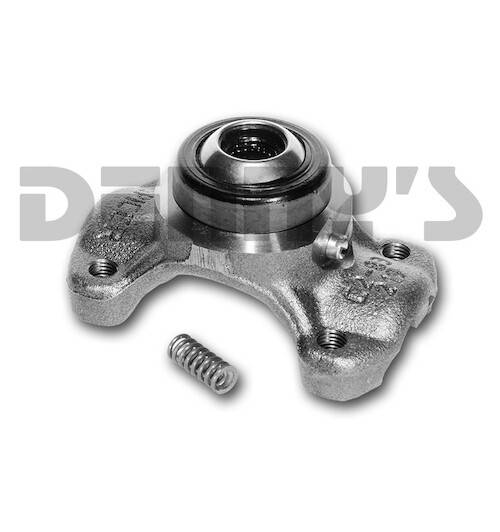

DANA SPICER 211355X CV Centering Yoke 1310 Series GREASABLE
Part #:
211355X
Your Cost $46.95

DANA SPICER 211355X

GREASEABLE



Spicer
DANA SPICER 211355X CV Centering Yoke 1310 Series GREASABLE
DANA SPICER 211355X CV Centering Yoke 1310 Series GREASABLE
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $46.95

DANA SPICER 211355X

  • Use on any 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint
  • 1310 Series... 3 1/4 inches between Tabs in centering Yoke
  • Comes with 4 grade 8 bolts
  • GREASABLE center ball socket
  • New spring Included
DIMENSIONS
  • Fits 1310 U-Joint
    • (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
    • (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
  • Bolt Holes are 5/16 - 24 fine thread
    • Bolt hole spacing 1.500 inches across u-joint cap
    • Bolt hole spacing 2.343 inches side to side
  • Fits .500 inch stud diameter
INCLUDES
  • New spring Included
  • Comes with (4) grade 8 bolts 5/16 - 24 fine thread
DANA SPICER 211355X CV Centering Yoke 1310 Series GREASABLE

DANA SPICER 211355X CV Centering Yoke 1310 Series GREASABLE
