Dana Spicer 75265X Intermediate Shaft 15 spline fits Passenger Side Disconnect 1994 to 2001 DODGE Ram 1500, 2500LD with Dana 44 Disconnect front axle
Part Number:
75265X


UPC:
023913149352

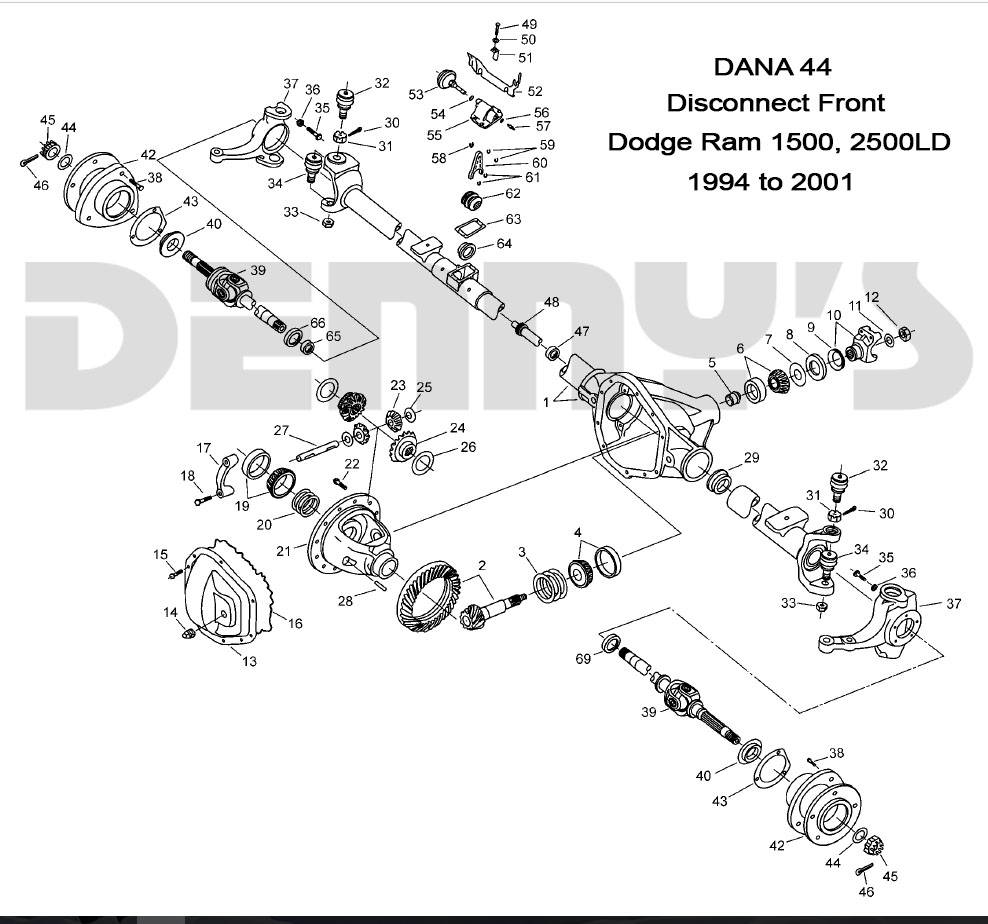

Diagram Number:
48
Your Cost $119.68
STATUS:  IN STOCK - FREE SHIPPING

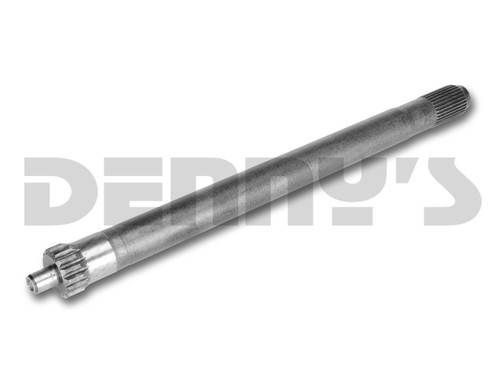

DANA SPICER 75265X

INTERMEDIATE SHAFT - Passenger Side

15 SPLINE

DODGE RAM 1500, 2500LD with Dana 44 Disconnect front axle

  • Fits 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
  • Connects the Disconnect Coupler to Differential Side Gear
    • A = 18.2 inches
    • B = 1.59 inches diameter
    • 15 Splines at Disconnect Coupler
    • C = 0.93 inches spline length
    • D = 1.31 inches diameter
    • 30 Splines at Differential Side Gear
    • E = 1.80 inches spline length
    • Passenger Side
    • Replaces old part number 45770
Spicer
Dana Spicer 75265X Intermediate Shaft 15 spline fits Passenger Side Disconnect 1994 to 2001 DODGE Ram 1500, 2500LD with Dana 44 Disconnect front axle
Dana Spicer 75265X Intermediate Shaft 15 spline fits Passenger Side Disconnect 1994 to 2001 DODGE Ram 1500, 2500LD with Dana 44 Disconnect front axle
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $119.68

DANA SPICER 75265X

INTERMEDIATE SHAFT - Passenger Side

15 SPLINE

DODGE RAM 1500, 2500LD with Dana 44 Disconnect front axle

  • Fits 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
  • Connects the Disconnect Coupler to Differential Side Gear
    • A = 18.2 inches
    • B = 1.59 inches diameter
    • 15 Splines at Disconnect Coupler
    • C = 0.93 inches spline length
    • D = 1.31 inches diameter
    • 30 Splines at Differential Side Gear
    • E = 1.80 inches spline length
    • Passenger Side
    • Replaces old part number 45770



Dana Spicer 75265X Intermediate Shaft 15 spline fits Passenger Side Disconnect 1994 to 2001 DODGE Ram 1500, 2500LD with Dana 44 Disconnect front axle

Dana Spicer 75265X Intermediate Shaft 15 spline fits Passenger Side Disconnect 1994 to 2001 DODGE Ram 1500, 2500LD with Dana 44 Disconnect front axle
