Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 621063 OUTER AXLE fits 1985 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle
Part Number:
621063


UPC:
023913134891

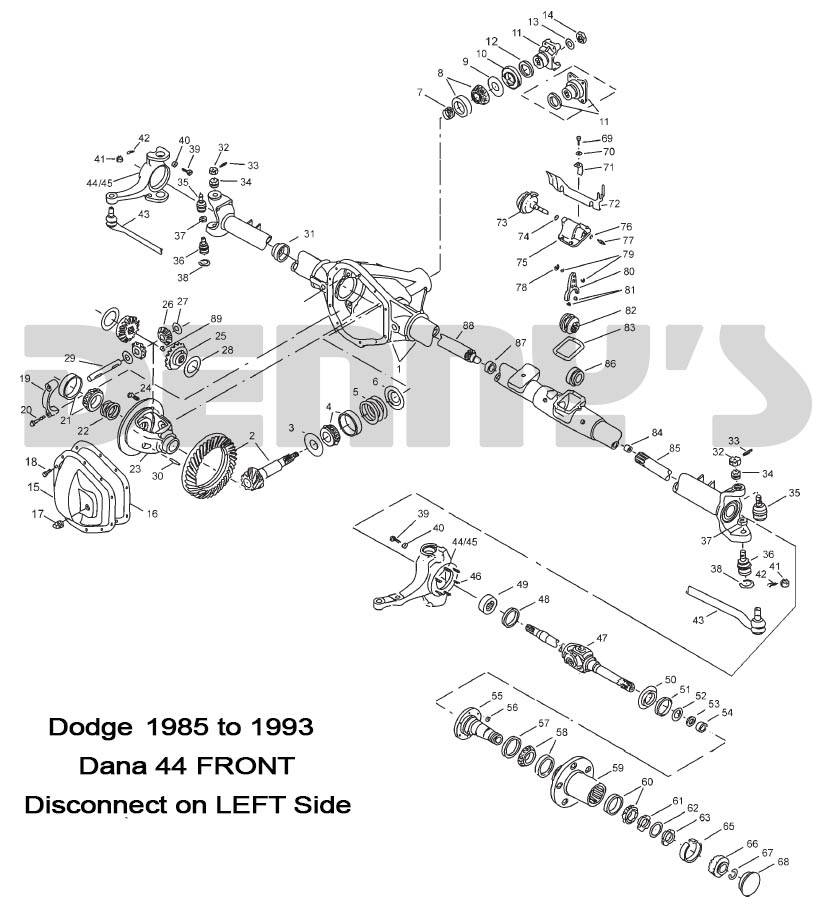

Diagram Number:
47-OUTER
Your Cost $175.95
STATUS:  IN STOCK - FREE SHIPPING

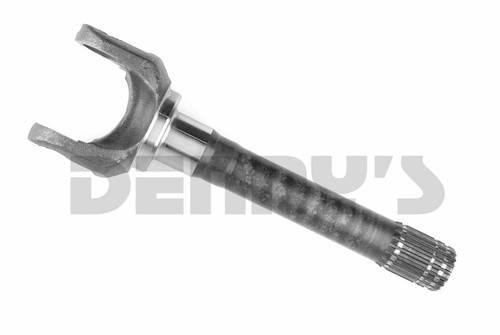

DANA SPICER 621063

  • OUTER AXLE SHAFT
    • Fits 1985 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect front axle
      • CHECK to be sure Dimension B = 9.92 inches on original axle before buying
      • DOES NOT FIT 1991 to 1991-1/2 DODGE with Bill of Materials number 610360-2.

Spicer
Dana Spicer 621063 OUTER AXLE fits 1985 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle
Dana Spicer 621063 OUTER AXLE fits 1985 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $175.95

DANA SPICER 621063

  • OUTER AXLE SHAFT
    • Fits 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect front axle
      • CHECK to be sure Dimension B = 9.92 inches on original axle before buying
      • DOES NOT FIT 1991 to 1991-1/2 DODGE with Bill of Materials number 610360-2

DIMENSIONS

  • 19 SPLINES
  • B1 = 1.250 inch diameter with 19 splines
  • B = 9.92 inches Centerline of u-joint to end of yoke
  • Requires 5-760X Axle Universal Joint
    • U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
    • U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )
image/jpeg
Dana Spicer 621063 OUTER AXLE fits 1985 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle

Dana Spicer 621063 OUTER AXLE fits 1985 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle
