Dana Spicer 620200 OUTER AXLE fits 1991 to 1991-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle

Part Number:
620200

UPC:

023913134532

Diagram Number:
47-OUTER

Your Cost ~~$115.81~~ Sale Price $102.56

You Save $13.25

Sorry, sold out

STATUS: SOLD OUT...More Coming Soon

DANA SPICER 620200

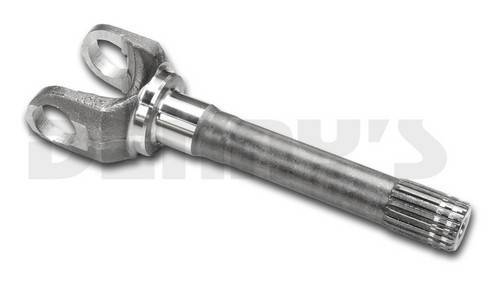

OUTER AXLE SHAFT - Replaces old part number 36503
- Fits 1991 to 1991-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect front axle
- ONLY Fits Bill of Materials number 610360-2 ONLY
  - CHECK to be sure Dimension B = 9.72 inches on original axle before buying
  - Some 1991 - 1991-1/2 will have slightly longer outer axle See Part Number 621063

Dana Spicer 620200 OUTER AXLE fits 1991 to 1991-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: ~~$115.81~~ Sale Price $102.56

You Save $13.25

DANA SPICER 620200

OUTER AXLE SHAFT - Replaces old part number 36503
- Fits 1991 to 1991-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect front axle
- ONLY Fits Bill of Materials number 610360-2 ONLY
  - CHECK to be sure Dimension B = 9.72 inches on original axle before buying
  - Some 1991 - 1991-1/2 will have slightly longer outer axle See Part Number 621063

DIMENSIONS

19 SPLINES
B1 = 1.250 inch diameter with 19 splines
B = 9.72 inches Centerline of u-joint to end of yoke
Requires 5-760X Axle Universal Joint
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

Dana Spicer 620200 OUTER AXLE fits 1991 to 1991-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle

You May Also Need These Parts to Complete the Job

Dana Spicer 31624 SNAP RING for Outer Axle Shaft 1985 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect front axle Part#: 31624 $0.76	Dana Spicer 36364 Seal Retainer for Outer Axle Shaft fits 1985 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect front axle Part#: 36364 $2.79
Dana Spicer 5-760X Front Axle Universal Joint fits 1985 to 1993-1/2 DODGE D500, D600, D800 with Dana 44 Disconnect front axle Part#: 5-760X $28.56
