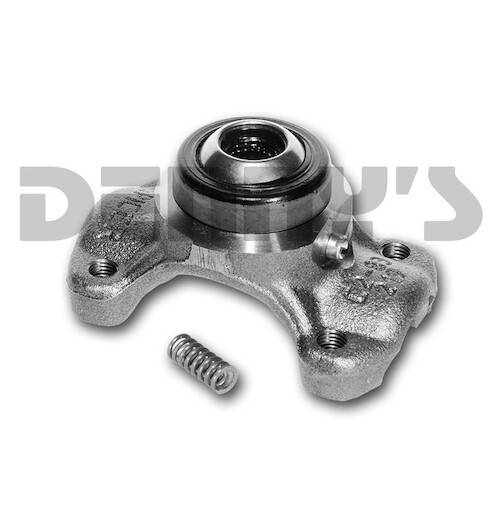

DANA SPICER 211355X GREASEABLE CV Centering Yoke for Jeep with OEM or aftermarket 1310 series CV Driveshaft front/rear

Part Number:
211355X

UPC:

023913228972

Your Cost $56.95

STATUS: IN STOCK

Dana Spicer 211355X

Jeep CV Driveshaft Centering Yoke 1310 Series

Use on any Jeep front/rear 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint

Fits Jeep Models with OEM or aftermarket 1310 series CV Driveshaft Front/Rear

DIMENSIONS

Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter

INCLUDES

DANA SPICER 211355X GREASEABLE CV Centering Yoke for Jeep with OEM or aftermarket 1310 series CV Driveshaft front/rear

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $56.95

Dana Spicer 211355X

Jeep CV Driveshaft Centering Yoke 1310 Series

Use on any Jeep front/rear 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint

Fits Jeep Models with OEM or aftermarket 1310 series CV Driveshaft Front/Rear

DIMENSIONS

Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter

INCLUDES

DANA SPICER 211355X GREASEABLE CV Centering Yoke for Jeep with OEM or aftermarket 1310 series CV Driveshaft front/rear

You May Also Need These Parts to Complete the Job

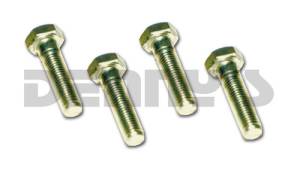

CV Yoke Bolts .312 x 24 Fine Thread fits Dana Spicer 211355X, 211544X, 211179X, 211996X and Neapco N3-83-019 centering yokes Part#: 4289-516 $2.48	Dana Spicer 5-153X Jeep Front Driveshaft Universal Joint 1310 Series...Greasable Part#: 5-153X $13.09

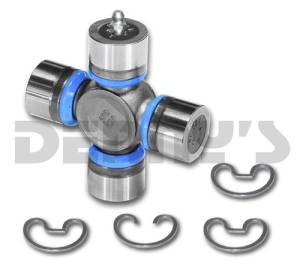

DANA SPICER 5-1310X - Jeep Driveshaft Universal Joint 1310 Series...Maintenance Free Part#: 5-1310X $19.66	Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings Part#: 5-1310-1X $26.25

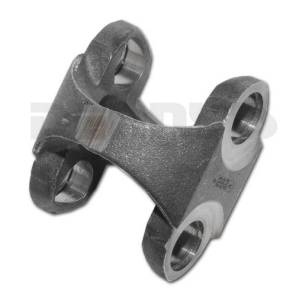

DANA SPICER 2-26-497 Double Cardan CV H Yoke 1310 Series for JEEP CJ5, CJ7, CJ8, Wrangler, Cherokee all models with 1310 CV Driveshaft front/rear Part#: 2-26-497 ~~$36.35~~ $30.44
