Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

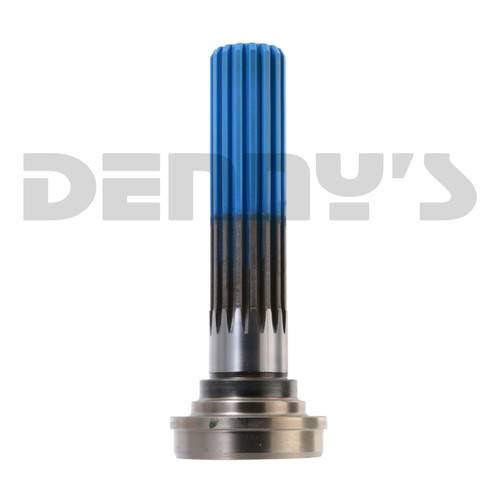

Dana Spicer 4-53-61 MIDSHIP SPLINE Fits 3.5 inch .095 wall tube 1.750 inch Diameter with 16 Splines
Part Number:
4-53-61


UPC:
023913213930
Your Cost $162.20 Sale Price $136.64
You Save $25.56
STATUS:  FACTORY DIRECT - SPECIAL ORDER

DANA SPICER 4-53-61

  • MIDSHIP SPLINE
  • Use with Center Support Bearing


Spicer
Dana Spicer 4-53-61 MIDSHIP SPLINE Fits 3.5 inch .095 wall tube 1.750 inch Diameter with 16 Splines
Dana Spicer 4-53-61 MIDSHIP SPLINE Fits 3.5 inch .095 wall tubing 1.750 inch Diameter with 16 Splines
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT - SPECIAL ORDER
YOUR COST:  $162.20 Sale Price $136.64
You Save $25.56

>>>>> SPECIAL ORDER PART:  This part number is special ordered from the factory and shipped direct to you.  It is NOT Cancellable and NOT Returnable.  Please make your selection carefully! <<<<<

DANA SPICER 4-53-61

  • MIDSHIP SPLINE
  • Use with Center Support Bearing
  • Fits any series 16 Spline SLIP YOKE designed for 1.750 inch diameter spline
    • Fits TUBE DIAMETER = 3.5 inch OUTSIDE TUBE Diameter
    • Fits TUBE WALL THICKNESS =  .095 inch Tube wall thickness
    • Major SPLINE Diameter = 1.750
    • SPLINES = 16
    • STYLE = 1
    • B = 2.188
    • C = 1.772
    • G = .812
    • K = 8.562
    • L = 5.938
    • Y = 7.469
  • SPECIAL NOTES:
    • Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)



CLICK HERE : For ALL DANA SPICER Spline Part Numbers, Specifications and Dimensions

Dana Spicer 4-53-61 MIDSHIP SPLINE Fits 3.5 inch .095 wall tube 1.750 inch Diameter with 16 Splines

Dana Spicer 4-53-61 MIDSHIP SPLINE Fits 3.5 inch .095 wall tubing 1.750 inch Diameter with 16 Splines
