DANA SPICER 5-2-1089 Flange Yoke 1610 Series Bearing Plate Style
Part Number:
5-2-1089


UPC:
023913223373
Your Cost $236.89 Sale Price $199.56
You Save $37.33
Sorry, sold out
STATUS:  FACTORY BACK ORDER at this time

DANA SPICER 5-2-1089

1610 Series Flange Yoke




Spicer

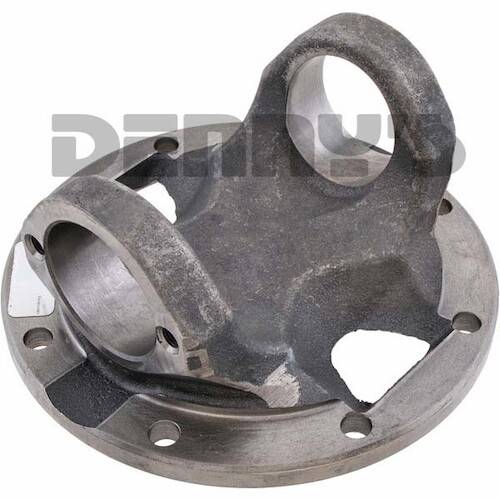

DANA SPICER 5-2-1089 Flange Yoke 1610 Series Bearing Plate Style
Generic Photo
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY BACK ORDER at this time
YOUR COST:  $236.89 Sale Price $199.56
You Save $37.33

>>>>> SPECIAL ORDER PART:  This part number is special ordered from the factory and shipped direct to you.  It is NOT Cancellable and NOT Returnable.  Please make your selection carefully! <<<<<

DANA SPICER 5-2-1089

1610 Series Flange Yoke

  • A - Flange or Swing Diameter = 6.875 inches
  • B - Bolt Circle Diameter = 6.125 inches
    • Bolt Hole Diameter = 0.375 inches
    • Bolt Holes = 8
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 5.375 inches
    • Center Pilot = FEMALE
  • Series = 1610
    • U-Joint Width = 5.312 inches
    • D - U-Joint Bearing cap diameter = 1.875 inches
  • G - Center of u-joint bore to Face of flange = 1.875 inches
  • Special Notes: Part has opening cast thru web, Bearing Plate Style





Heavy duty truck and equipment driveshaft flange yokes at Denny's Driveshafts

DANA SPICER 5-2-1089 Flange Yoke 1610 Series Bearing Plate Style

Generic Photo

You May Also Need These Parts to Complete the Job

DANA SPICER 5-279X Universal joint 1610 Series Bearing Plate Style
$65.66
