DANA SPICER 3-2-1879 Flange Yoke 1350 Series
Part Number:
3-2-1879


UPC:
023913234799
Your Cost $64.72 Sale Price $54.20
You Save $10.52
STATUS:  IN STOCK

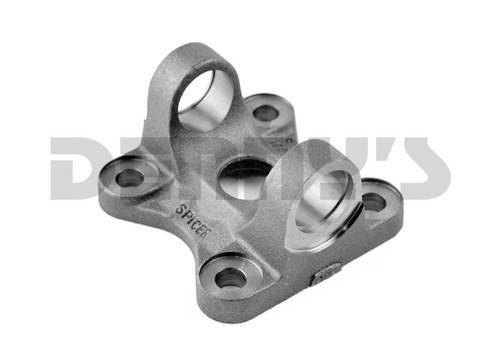

DANA SPICER 3-2-1879

1350 Series Flange Yoke




Spicer
DANA SPICER 3-2-1879 Flange Yoke 1350 Series
DANA SPICER 3-2-1879 Flange Yoke 1350 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $64.72 Sale Price $54.20
You Save $10.52

DANA SPICER 3-2-1879

1350 Series Flange Yoke

  • A - Flange or Swing Diameter = 5.250 inches
  • B - Bolt Circle Diameter = 4.250 inches
    • Bolt Hole Diameter = 0.500 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.560 inches
    • Center Pilot = FEMALE
  • Series = 1350
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.625 inches
    • D - U-Joint Bearing cap diameter = 1.187 inches
  • G - Center of u-joint bore to Face of flange = 1.618 inches
  • X - inches
  • Y - inches
  • Special Notes: Bolt holes are equally spaced. Part has hole thru center.





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 3-2-1879 Flange Yoke 1350 Series

DANA SPICER 3-2-1879 Flange Yoke 1350 Series
