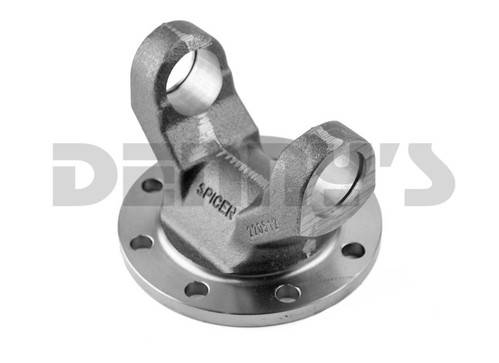

DANA SPICER 3-2-1159 Flange Yoke 1410 Series
Part Number:
3-2-1159


UPC:
023913231385
Your Cost $91.39 Sale Price $76.99
You Save $14.40
STATUS:  FACTORY DIRECT TO YOU

DANA SPICER 3-2-1159

1410 Series Flange Yoke




Spicer
DANA SPICER 3-2-1159 Flange Yoke 1410 Series
DANA SPICER 3-2-1159 Flange Yoke 1410 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $91.39 Sale Price $76.99
You Save $14.40

DANA SPICER 3-2-1159

1410 Series Flange Yoke

  • A - Flange or Swing Diameter = 4.724 inches
  • B - Bolt Circle Diameter = 3.996 inches
    • Bolt Hole Diameter = 0.394 inches
    • Bolt Holes = 8
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.954 inches
    • Center Pilot = FEMALE
  • Series = 1410
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.187 inches
    • D - U-Joint Bearing cap diameter = 1.187 inches
  • G - Center of u-joint bore to Face of flange = 2.531 inches
  • X - inches
  • Y - inches
  • Special Notes: METRIC FLANGE





Denny's Driveshafts Flange Yoke Dimension Diagram
