DANA SPICER 3-28-427 Weld Yoke 1350 Series to fit 3.5 inch .083 wall tube
Part Number:
3-28-427


UPC:
023913229108
Your Cost $36.21 Sale Price $32.95
You Save $3.26
STATUS:  IN STOCK

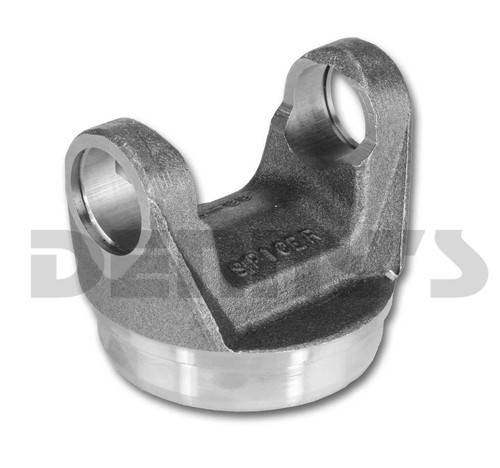

DANA SPICER 3-28-427

1350 Series Weld Yoke

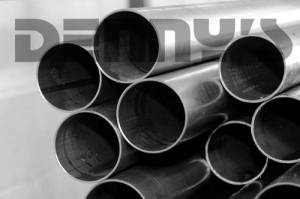

  • Fits 3.5 inch OD X .083 wall tubing
    • F - Butt Diameter = 3.345
  • Series = 1350
  • Lock up style = OUTSIDE SNAP RING
  • E - Universal Joint Width = 3.625
  • D - Universal Joint Bore = 1.187
  • H - Center of u-joint bore to point of weld = 1.840

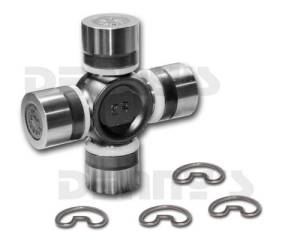

  • Special Notes: USE KIT 5-178X, 5-1350X



CLICK HERE : For ALL DANA SPICER Weld Yoke Part Numbers, Specifications and Dimensions

Spicer
DANA SPICER 3-28-427  Weld Yoke 1350 Series to fit 3.5 inch .083 wall tube
DANA SPICER 3-28-427 Weld Yoke 1350 Series to fit 3.5 inch .083 wall tubing
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $36.21 Sale Price $32.95
You Save $3.26

DANA SPICER 3-28-427

1350 Series Weld Yoke

  • Fits 3.5 inch OD X .083 wall tubing
    • F - Butt Diameter = 3.345
  • Series = 1350
  • Lock up style = OUTSIDE SNAP RING
  • E - Universal Joint Width = 3.625
  • D - Universal Joint Bore = 1.187
  • H - Center of u-joint bore to point of weld = 1.840
  • Special Notes: USE KIT 5-178X, 5-1350X



CLICK HERE : For ALL DANA SPICER Weld Yoke Part Numbers, Specifications and Dimensions
