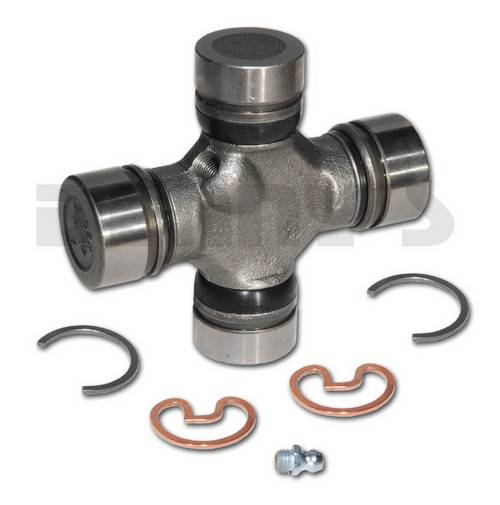

Dana Spicer 5-3022-1X Combination U-joint to connect Outside Snap Ring 1310 series to Inside "C" Clip GM 3R series
Part Number:
5-3022-1X


UPC:
023913464264
Your Cost $23.24 Sale Price $21.86
You Save $1.38
Sorry, sold out
STATUS:  Discontinued Item...See other choices listed

Dana Spicer 5-3022-1X

  • Combination Universal Joint
    • Connects Outside Snap Ring 1310 series (5-153X) to Inside "C" Clip GM 3R series (5-3147X)
    • Greaseable Universal Joint - Grease Fitting in body of u-joint
    • This is a very popular and handy u-joint when connecting mismatched driveline components.
  • 1310 series (Outside Snap Rings) see 5-153X
    • B = 3.219 (3-7/32) inches wide cap to cap
    • D = 2 bearing caps are 1.062 (1-1/16) inch diameter
    • Outside snap rings
  • GM 3R series (Inside "C" Clips) see 5-3147X
    • Approximately 3.625 (3-5/8) inches wide cap to cap
    • A = The span between the yoke inner surfaces where the "C" Clips lock in is 2.562 (2-9/16) inches
    • C = 2 bearing caps are 1.125 (1-1/8) inch diameter with inside "C" Clips to lock the cap in place.
    • Inside "C" Clips

Spicer
Dana Spicer 5-3022-1X Combination U-joint to connect Outside Snap Ring 1310 series to Inside "C" Clip GM 3R series
Dana Spicer 5-3022-1X Combination U-joint to connect Outside Snap Ring 1310 series to Inside "C" Clip GM 3R series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  Discontinued Item...See other choices listed
YOUR COST:  $23.24 Sale Price $21.86
You Save $1.38

Dana Spicer 5-3022-1X

  • Combination Universal Joint
    • Connects Outside Snap Ring 1310 series (5-153X) to Inside "C" Clip GM 3R series (5-3147X)
    • Greaseable Universal Joint - Grease Fitting in body of u-joint
    • This is a very popular and handy u-joint when connecting mismatched driveline components.
  • 1310 series (Outside Snap Rings) see 5-153X
    • B = 3.219 (3-7/32) inches wide cap to cap
    • D = 2 bearing caps are 1.062 (1-1/16) inch diameter
    • Outside snap rings
  • GM 3R series (Inside "C" Clips) see 5-3147X
    • Approximately 3.625 (3-5/8) inches wide cap to cap
    • A = The span between the yoke inner surfaces where the "C" Clips lock in is 2.562 (2-9/16) inches
    • C = 2 bearing caps are 1.125 (1-1/8) inch diameter with inside "C" Clips to lock the cap in place.
    • Inside "C" Clips
