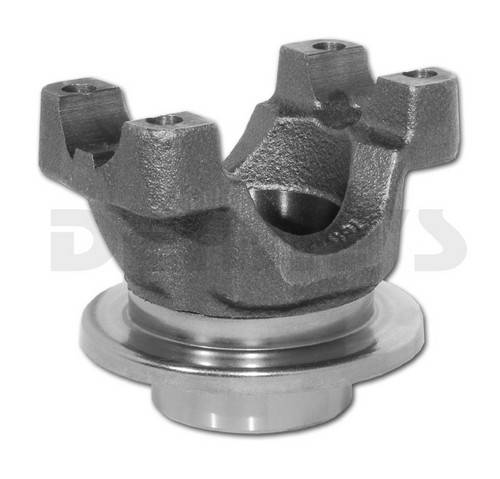

Neapco N2-4-GM03X PINION YOKE 30 spline 1310 Series fits 8.5 inch 10 Bolt FRONT 1978 and newer Chevy, GMC K5, K10, K15, K20

Part Number:
N2-4-GM03X

UPC:

083869002880

Your Cost $110.85

STATUS: IN STOCK - FREE SHIPPING

Neapco N2-4-GM03X

PINION YOKE
- 30 spline
- 1310 Series
- Fits 8.5 inch 10 Bolt 4X4 FRONT AXLE Chevy and GMC K5, K10, K15, K20
  - 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

DIMENSIONS

1310 Series front diff pinion yoke
- Fits universal joint 3.219 inches cap to cap
- Fits universal joint 1.062 inch caps
CL TO END OF HUB: 3.16 inches
HUB DIAMETER: 1.94 inches
JOINT ANGLE: 20
LENGTH THROUGH BORE: 1.15 inches
SPLINE DIAMETER: 1.312 inches
SPLINES: 30

U-Bolt Set Sold Separately

Neapco N2-4-GM03X PINION YOKE 30 spline 1310 Series fits 8.5 inch 10 Bolt FRONT 1978 and newer Chevy, GMC K5, K10, K15, K20

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $110.85

Neapco N2-4-GM03X

PINION YOKE
- 30 spline
- 1310 Series
- Fits 8.5 inch 10 Bolt 4X4 FRONT AXLE Chevy and GMC K5, K10, K15, K20
  - 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

DIMENSIONS

1310 Series front diff pinion yoke
- Fits universal joint 3.219 inches cap to cap
- Fits universal joint 1.062 inch caps
CL TO END OF HUB: 3.16 inches
HUB DIAMETER: 1.94 inches
JOINT ANGLE: 20
LENGTH THROUGH BORE: 1.15 inches
SPLINE DIAMETER: 1.312 inches
SPLINES: 30

U-Bolt Set Sold Separately
