DANA SPICER 3-28-557 Weld Yoke 1410 Series to fit 3.5 inch .083 wall tube
Part Number:
3-28-557


UPC:
023913229023
Your Cost $30.69
STATUS:  IN STOCK

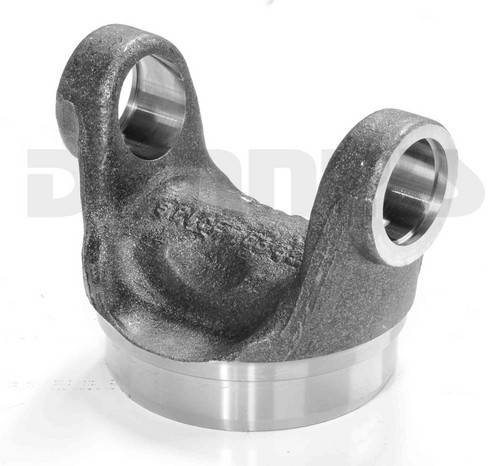

DANA SPICER 3-28-557

1410 Series Weld Yoke



Spicer
DANA SPICER 3-28-557 Weld Yoke 1410 Series to fit 3.5 inch .083 wall tube
DANA SPICER 3-28-557 Weld Yoke 1410 Series to fit 3.5 inch .083 wall tube
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $30.69

DANA SPICER 3-28-557

1410 Series Weld Yoke

  • Fits 3.5 inch OD X .083 wall tubing
    • F - Butt Diameter = 3.345
  • Series = 1410
  • Lock up style = OUTSIDE SNAP RING
  • E - Universal Joint Width = 4.187
  • D - Universal Joint Bore = 1.187
  • H - Center of u-joint bore to point of weld = 2.125
  • Special Notes: USE KIT 5-160X, 5-1410X



CLICK HERE : For ALL DANA SPICER Weld Yoke Part Numbers, Specifications and Dimensions

image/jpeg
DANA SPICER 3-28-557 Weld Yoke 1410 Series to fit 3.5 inch .083 wall tube

DANA SPICER 3-28-557 Weld Yoke 1410 Series to fit 3.5 inch .083 wall tube

You May Also Need These Parts to Complete the Job

Dana Spicer 5-160X Universal Joint 1410 Series
$24.91
Dana Spicer 5-1410X Universal Joint 1410 Series NON Greaseable
$31.70
